Running/Parking Lights, Tail Lights (Dual Xenon)



Running/Parking Lights, Tail Lights (Dual Xenon) C30/C70

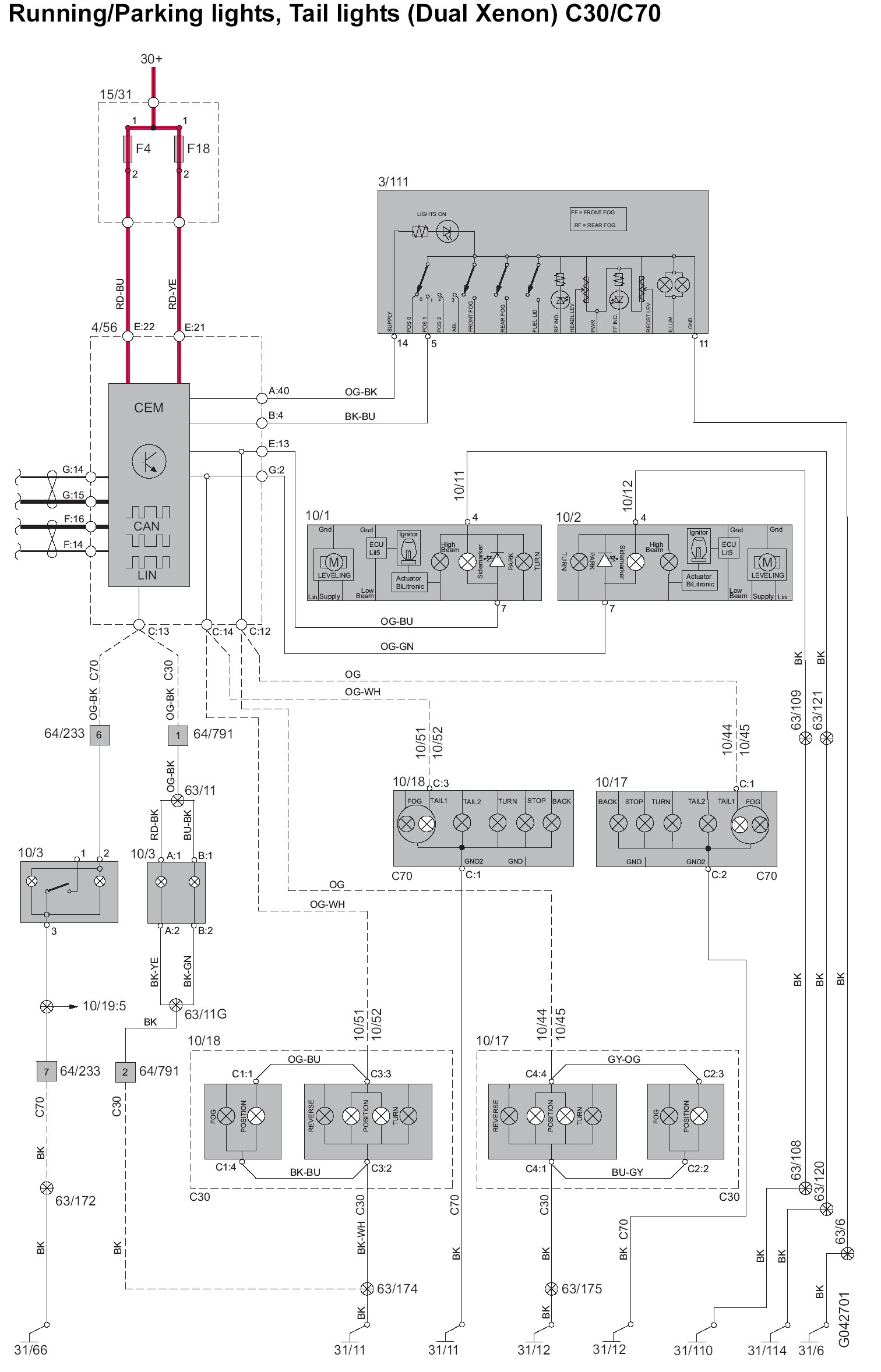

Running/Parking lights, Tail lights (Dual Xenon):






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
