Power Driver's Seat With Memory Function LHD

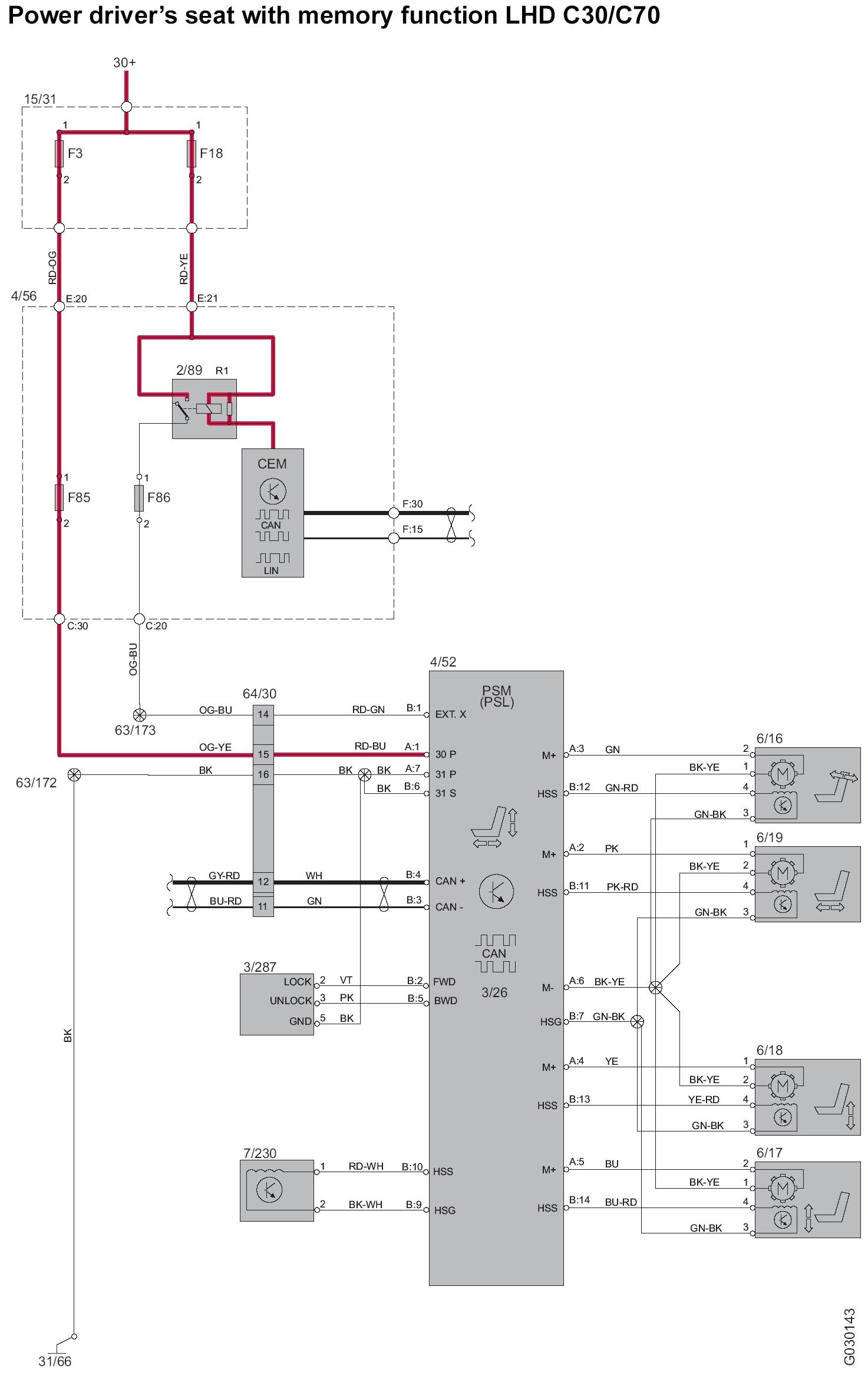

Power Driver's Seat With Memory Function LHD C30/C70


Power driver's seat with memory function LHD:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
