Home >> Volvo >> 2010 >> C70 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Data Communication, Low Speed CAN >> Changes Introduced Up to and Including June 2009

Changes Introduced Up to and Including June 2009



Data Communication, Low Speed CAN

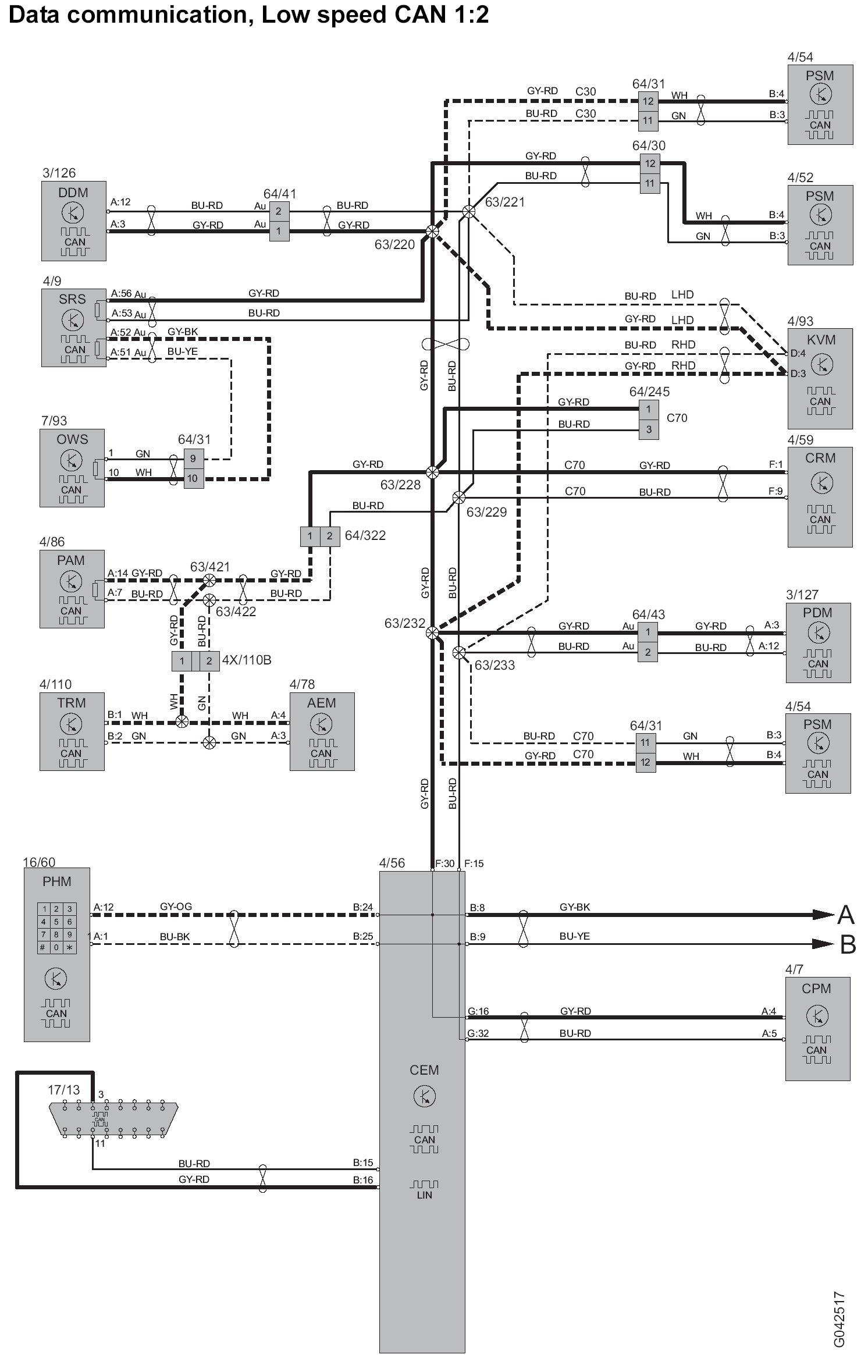

Data communiication, Low speed CAN 1:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
