Changes Introduced Up to and Including June 2009



Data Communication, High Speed CAN

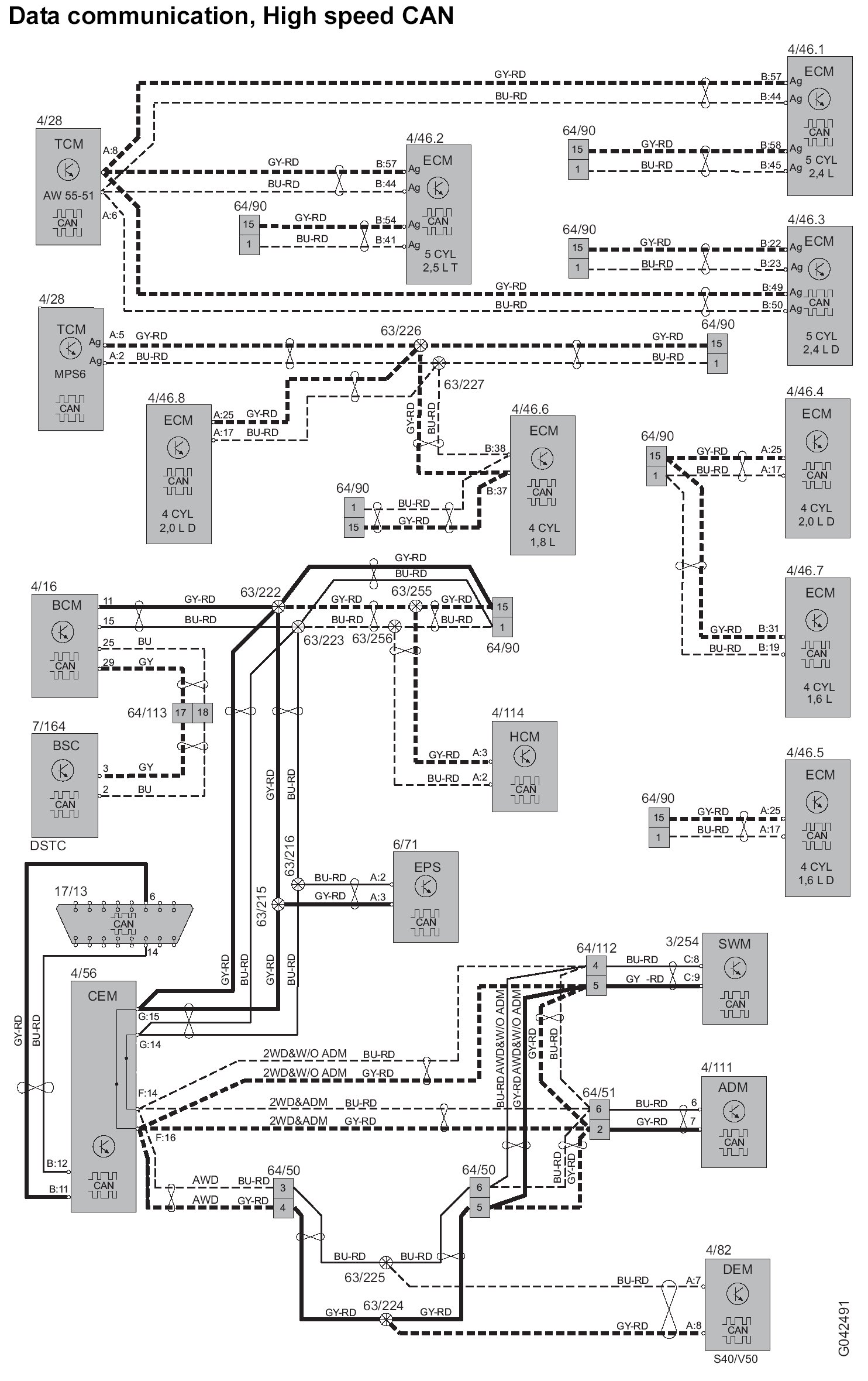

Data communiication, High speed CAN:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
