Changes Introduced Up to and Including December 2008



Data Communication MOST

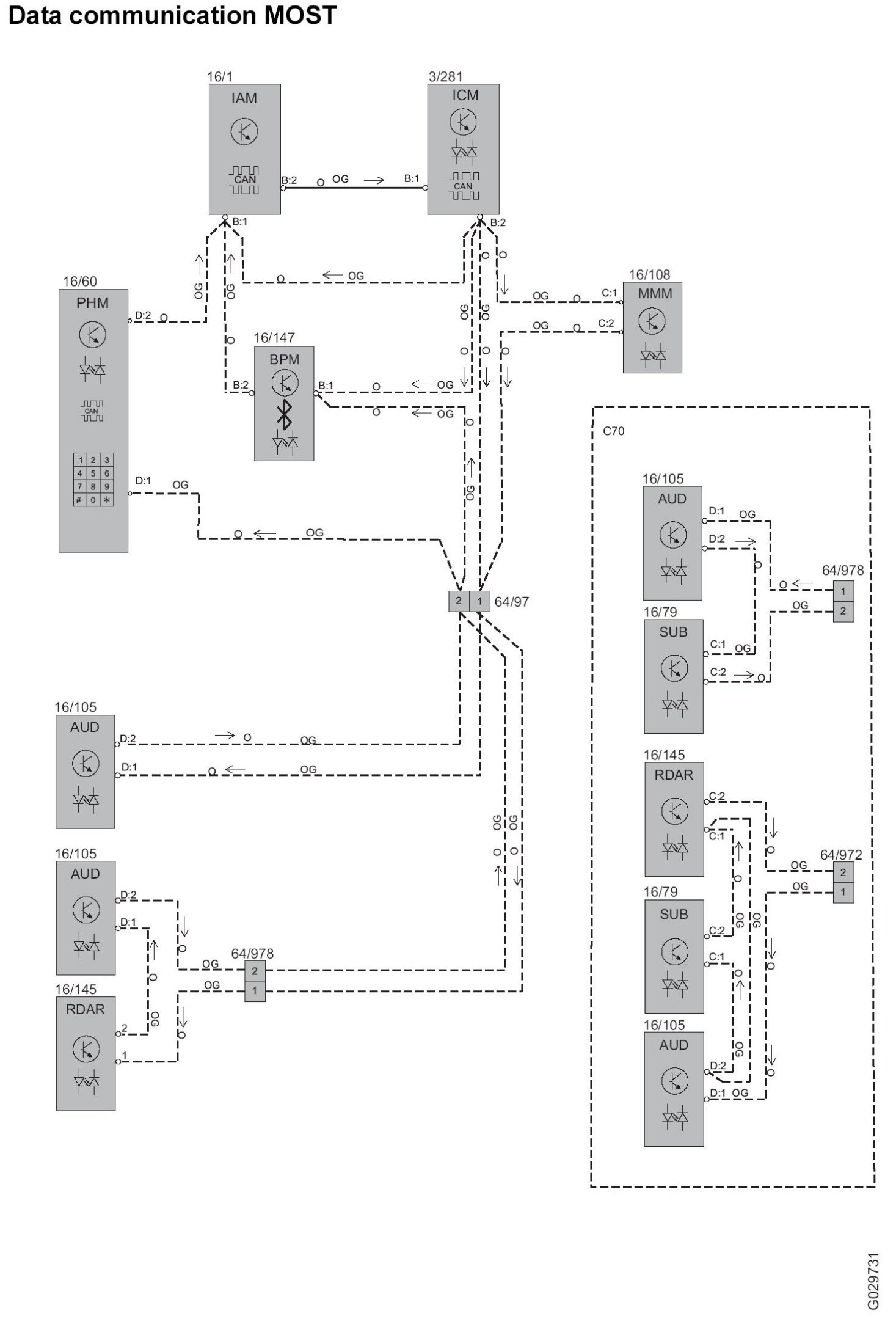

Data communication MOST:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
