Changes Introduced Up to and Including June 2009



Electrical distribution Overview


Electrical distribution Overview 1:2:

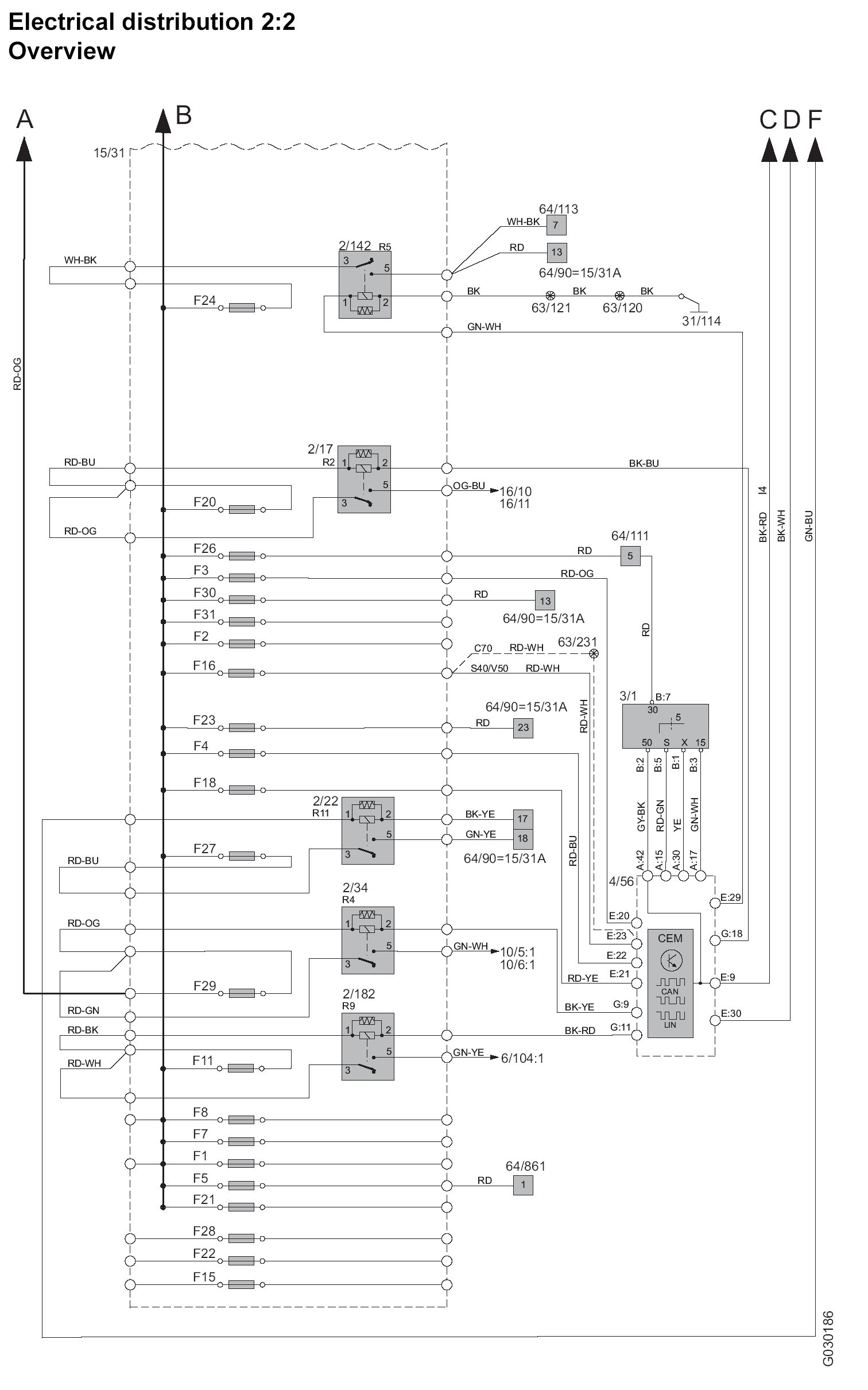

Electrical distribution Overview 2:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
