Climate Control System



Climate Control System, 5-Cyl

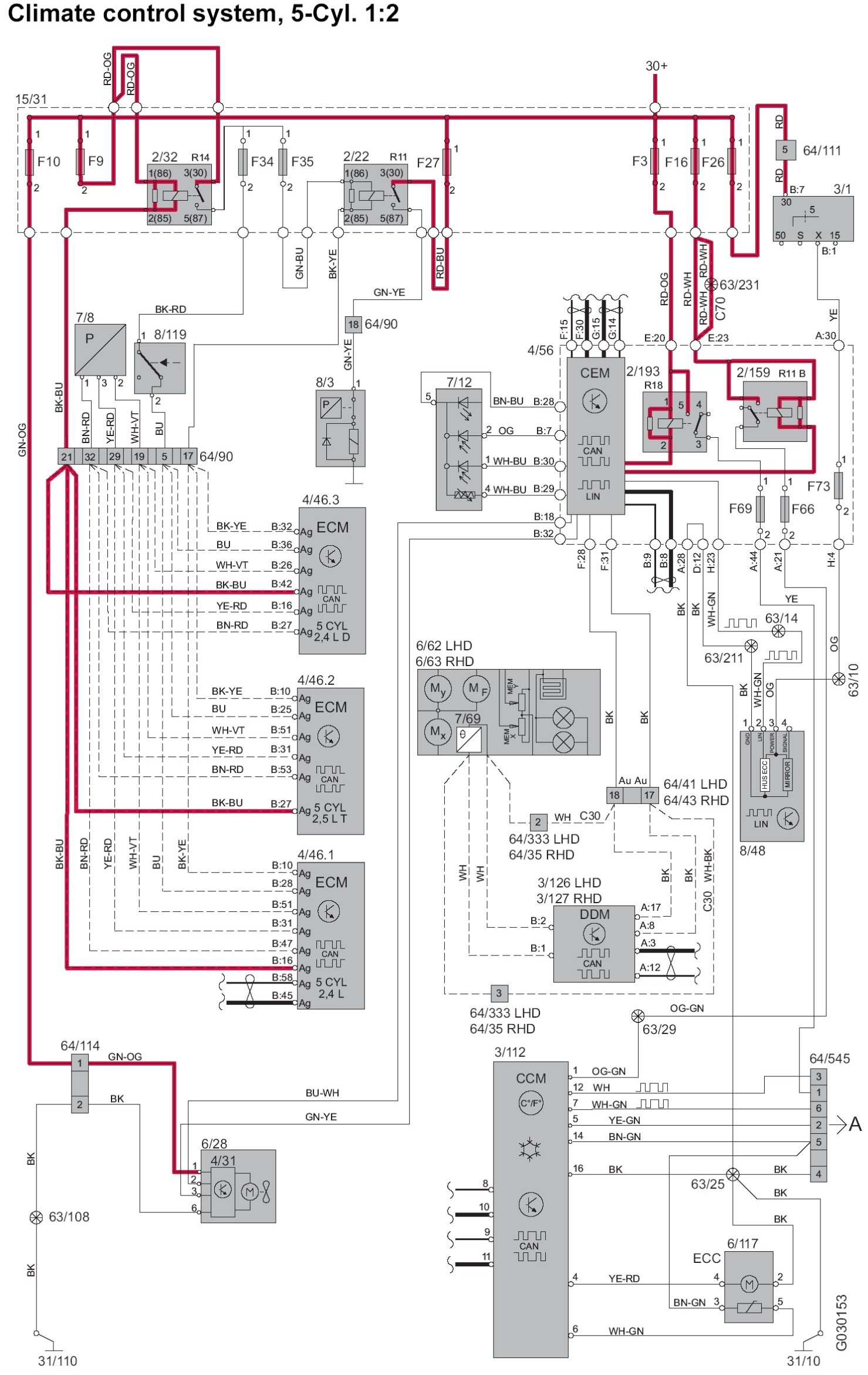

Climate control system 1:2:




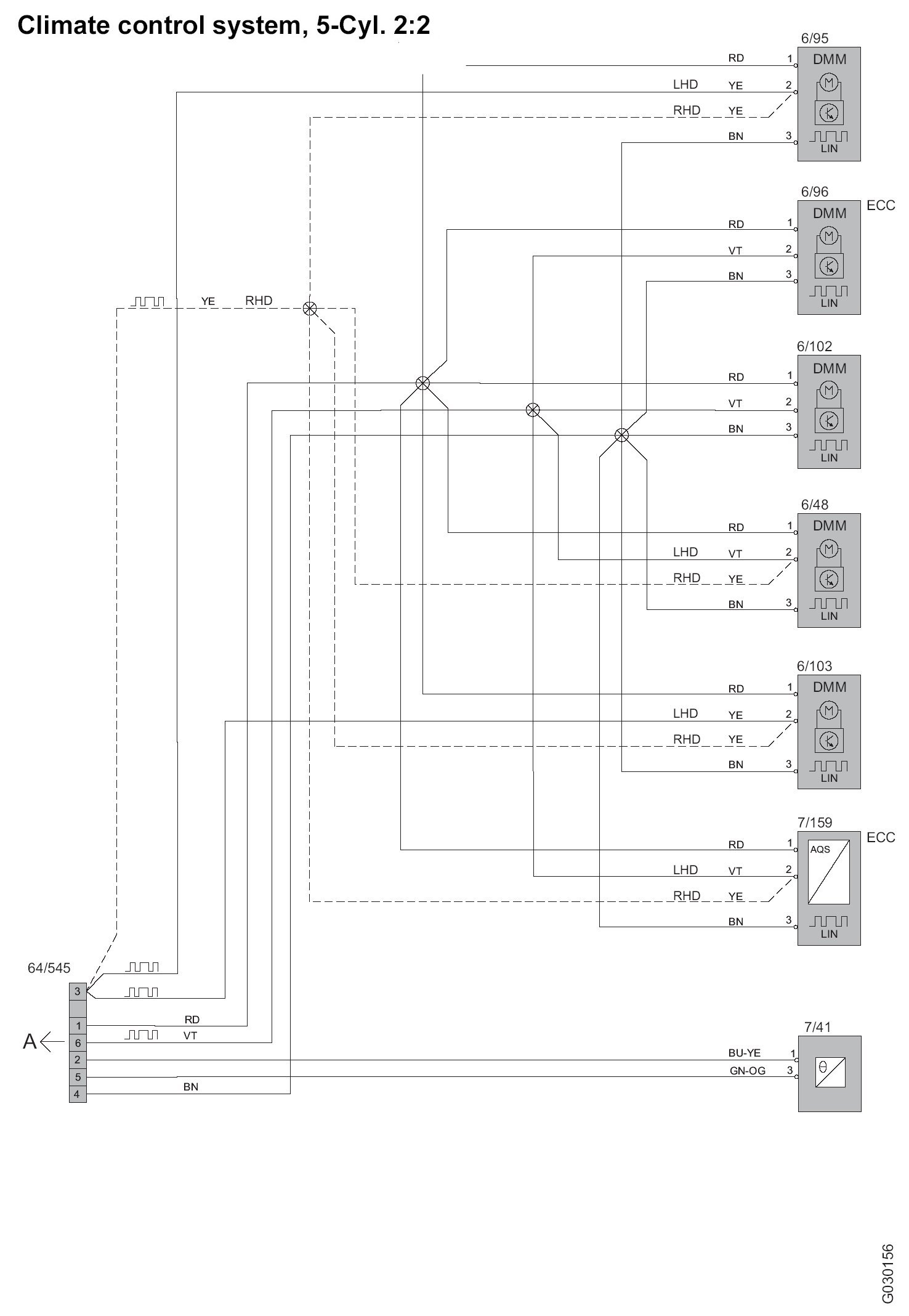

Climate control system 2:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
