Changes Introduced Up to and Including June 2009



Brake Control System & DSTC

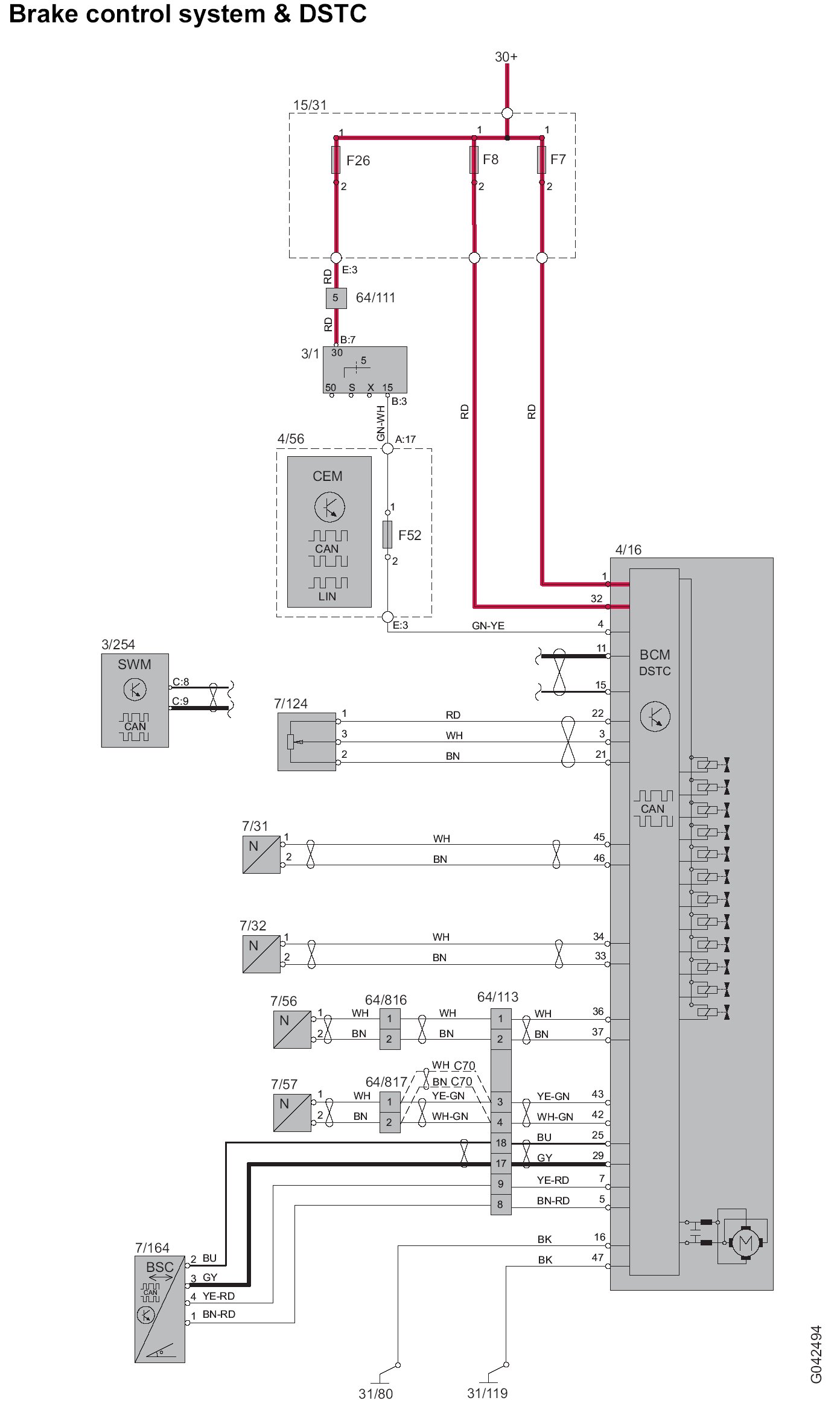

Brake control system & DSTC:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
