Anti-Theft Alarm

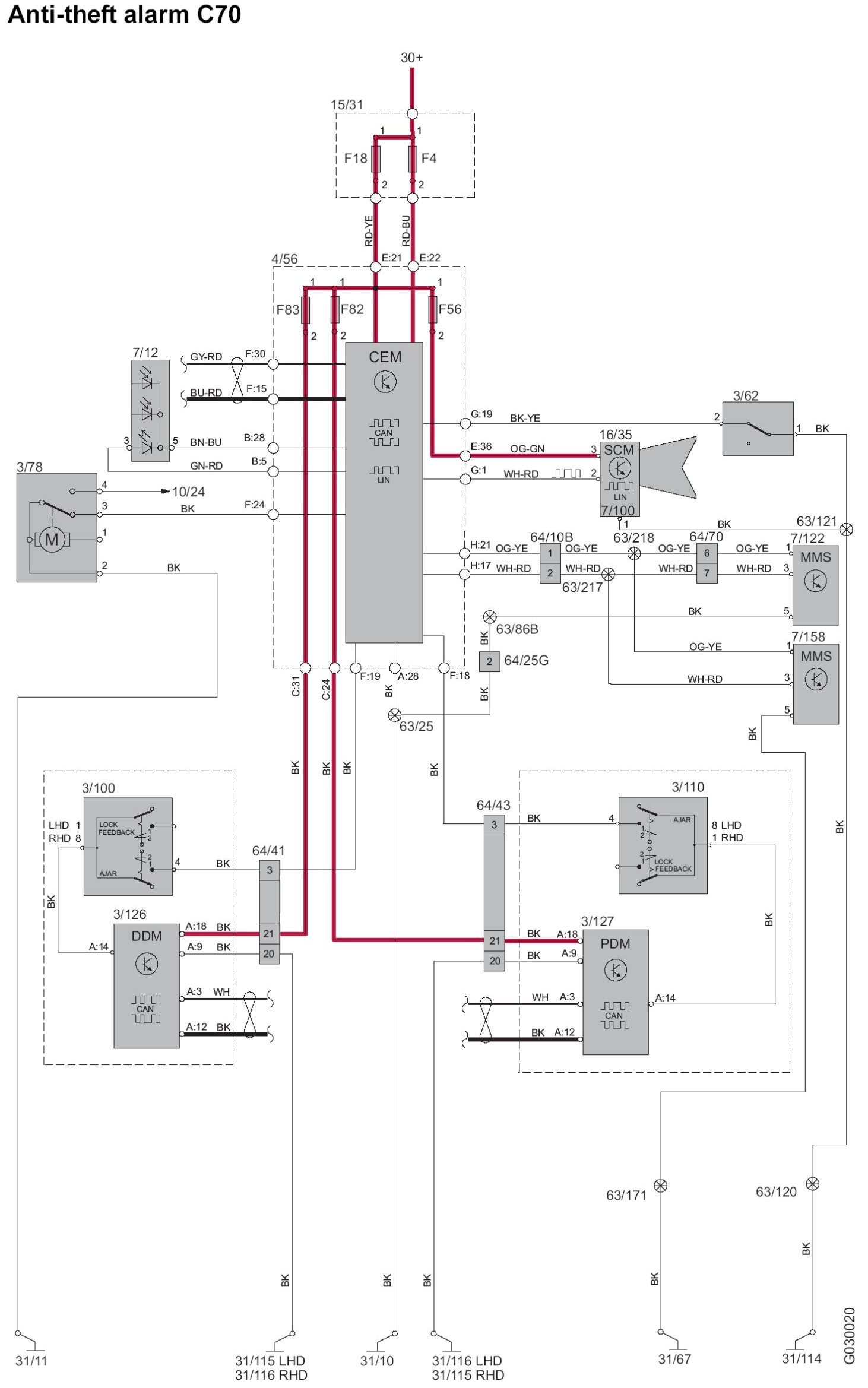

Anti-theft Alarm C70


Anti-theft alarm:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
