Checking Operation Of The Roof

Checking the operation of the roof

Checking the operation of the roof




- Ignition on.
To be able to identify the location of the fault, the resulting reading must be compared with the information in: Flow chart for roof operation Flow Chart For Roof Operation

Hint: To facilitate checking, the Flowchart at tank operation can be printed before reading off is started.

Activate reading the status of all the sensors by clicking the VCT2000 symbol.
Start operating the roof. The current values will be read if the roof has stopped due to one or more defective sensors.
After reading the sensors, their values are compared with those in the table in order to gain an indication of which sensors that are indicating a fault.
The table has been made according to the roof motion sequence and shows the mode of the sensors at each step.
Remedy as necessary.

Other information
- Flow chart for roof operation Flow Chart For Roof Operation
- Covertible Top Position Switch Convertible Top Position Switch





Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off.
- Reinstall the connectors, components etc.
- Ignition on.

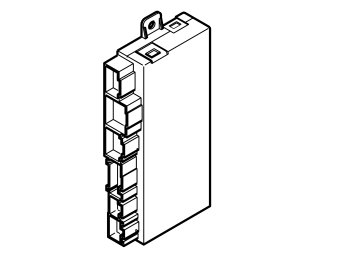

Check the function of the convertible roof module (CRM) by operating the roof with the control buttons.





Does operation of the roof work?

Yes - FAULT FOUND

No - No Fault Found

------------------------

No Fault Found - Fault-tracing information

-------------------------------------------------

Fault-tracing information

FAULT-TRACING FAILED - FAULT-TRACING FAILED

Attempt New Test - Checking the operation of the roof

-------------------------------------------------
