Service Roof System

Service roof system

Note! Some variation in the illustrations may occur, but the essential information is always correct.







Note! Make sure that the surfaces have a minimum temperature of +20°C.

Wipe off excess material with a rag.




Lower front windows.
Raise rear windows.

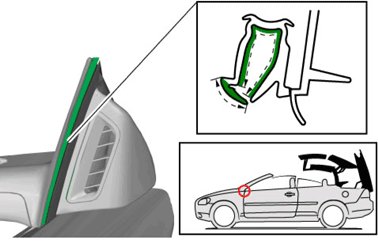

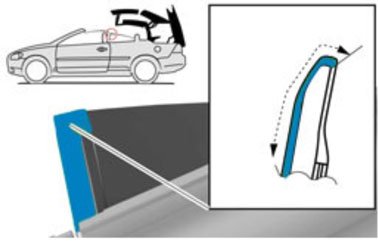

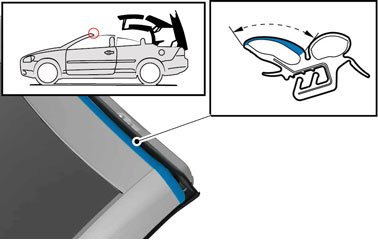

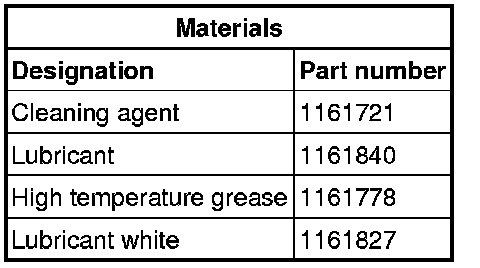

Use: Cleaning agent, 1161721

Use: Lubricant, 1161840






Use: Cleaning agent, 1161721

Use: Lubricant, 1161840






Use: Cleaning agent, 1161721

Use: Lubricant, 1161840






Use: Cleaning agent, 1161721

Use: Lubricant, 1161840






Use: Cleaning agent, 1161721

Use: Lubricant, 1161840






Use: Cleaning agent, 1161721

Use: Lubricant, 1161840

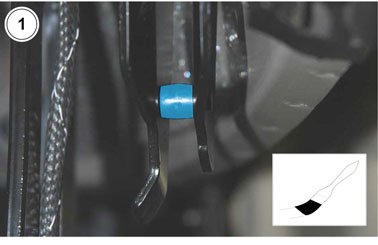

Make sure that the entire roller is lubricated.

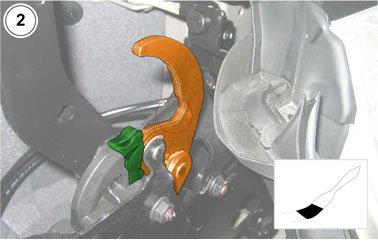

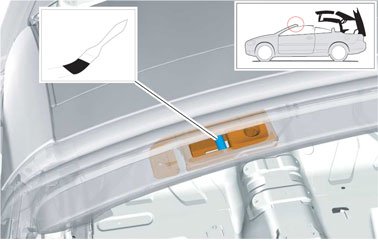

Use: High temperature grease, 1161778






Use: High temperature grease, 1161778











Use: High temperature grease, 1161778






Use: High temperature grease, 1161778






Use: High temperature grease, 1161778











Use: High temperature grease, 1161778






Use: High temperature grease, 1161778

Vehicles manufactured before chassis number: 000929

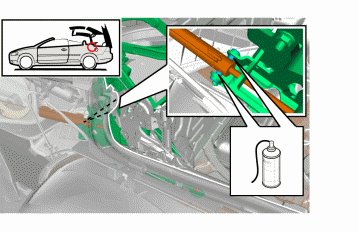

Use: Lubricant white, 1161827
