Convertible Top Center Latch

Convertible Top Center Latch

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Method content
- Lock, center roof panel, replacing
- Center roof lock brace, replacing

Lock, center roof panel, replacing

Removal





Note! Mark the location to facilitate installation.

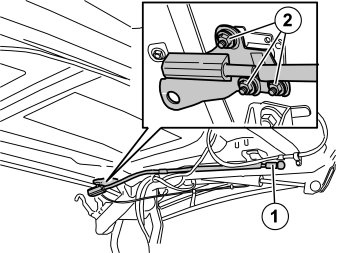

Remove:
- the hinges described in Hinge headliner middle Hinge Headliner Middle
- the lock rod (1)
- the lock plate (2) - 3 M6 screws.

Installation

Note! For tightening torques, see.

Install in the reverse order.
Adjust the roof as described in.

Center roof lock brace, replacing

Removal





Note! Mark the location to facilitate installation.

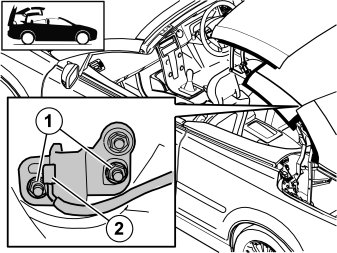

Remove:
- the 2 M6 nuts (1)
- the sensor (2), 1 Torx 20.

Installation

Note! For tightening torques, see.

Install in the reverse order.
