Home >> Volvo >> 2010 >> C70 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Power Door Mirrors >> Changes Introduced Up to and Including December 2008

Changes Introduced Up to and Including December 2008

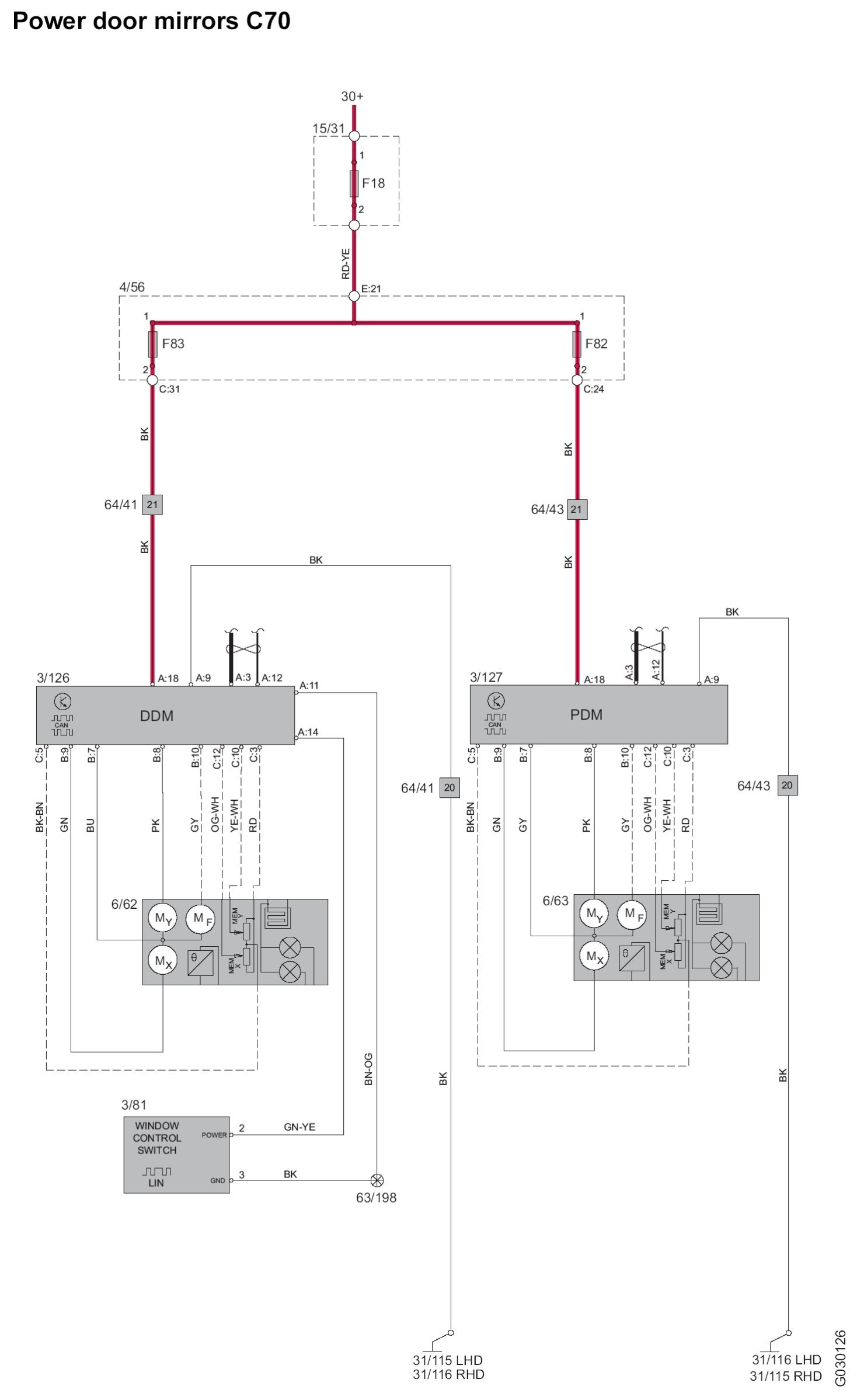

Power Door Mirrors C70


Power door mirrors:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
