Home >> Volvo >> 2010 >> C70 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Diagrams >> Electrical Diagrams >> Keyless Vehicle

Keyless Vehicle



Keyless Vehicle C70


Keyless vehicle 1:2:

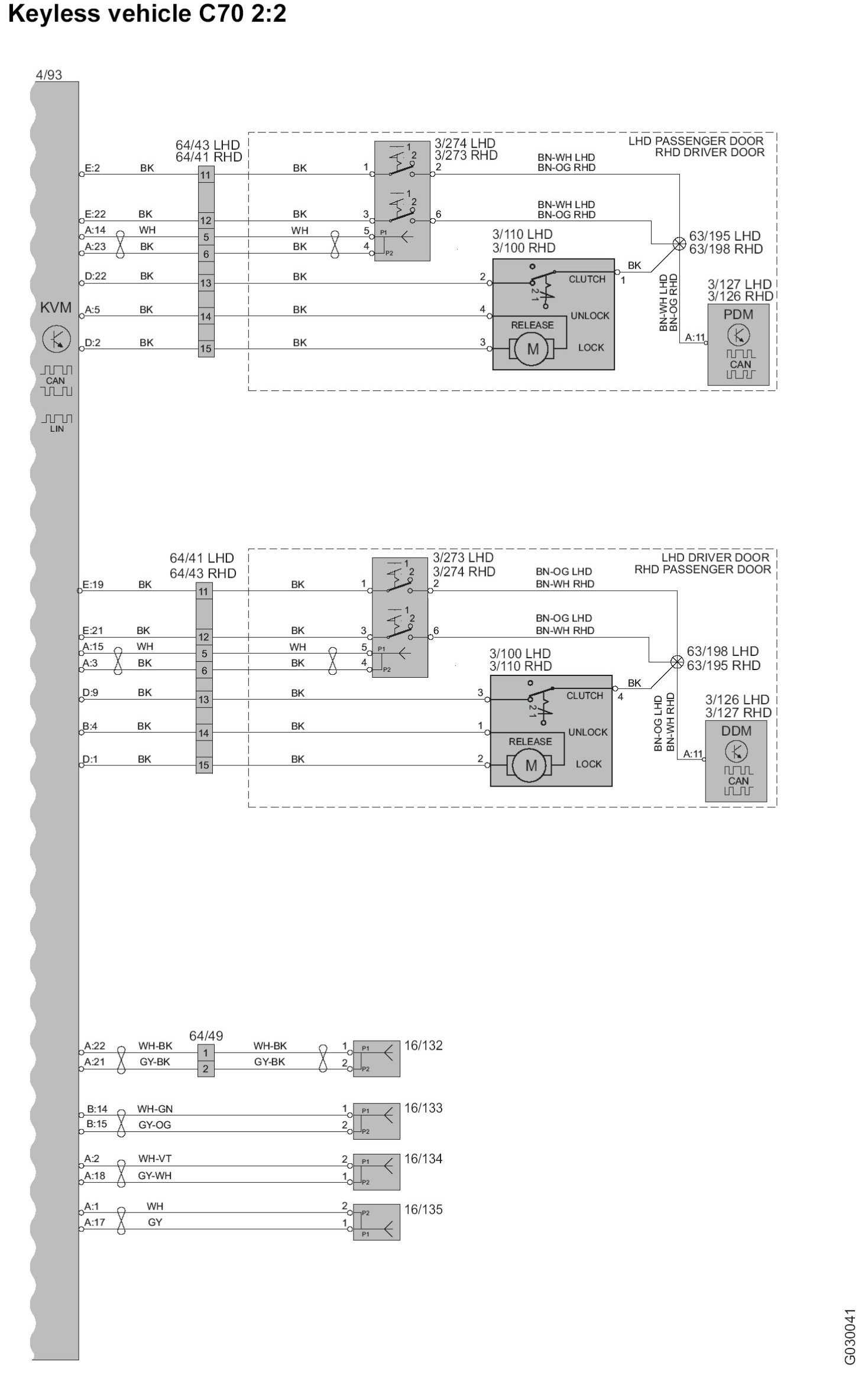

Keyless vehicle 2:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
