Home >> Volvo >> 2010 >> C70 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Diagrams >> Electrical Diagrams >> Central Electronic Module (CEM) >> Changes Introduced Up to and Including June 2009

Changes Introduced Up to and Including June 2009



Central Electronic Module CEM

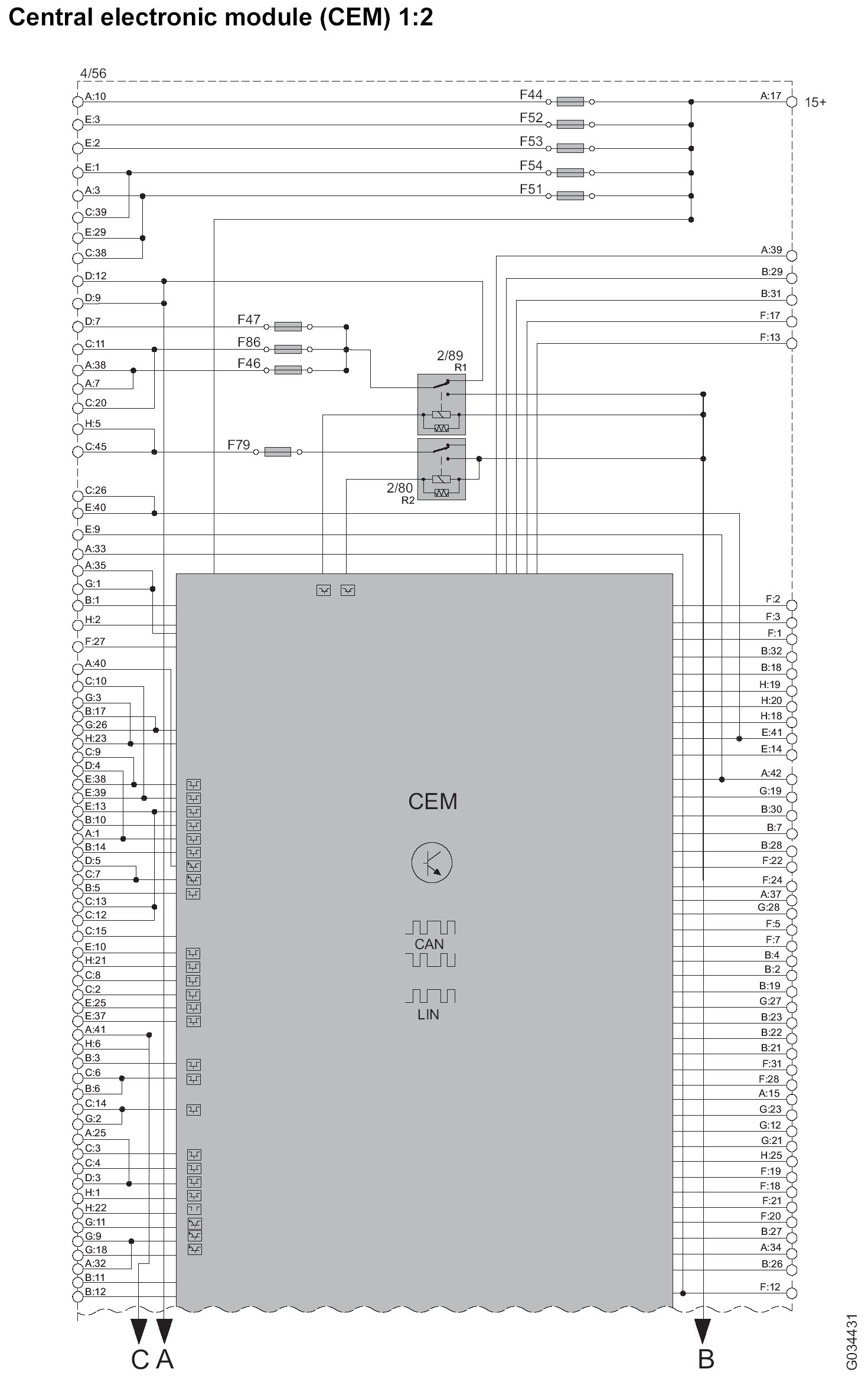

Central electronic module (CEM) 1:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
