Signal Specification, Subwoofer Module (SUB)






Signal specification

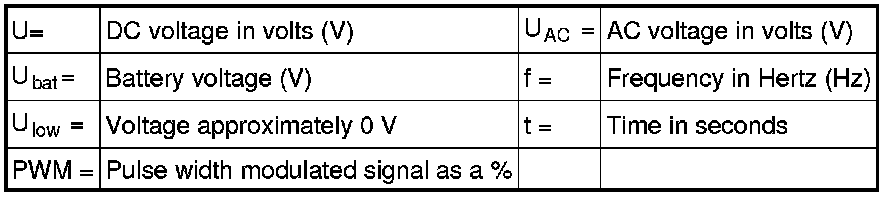

General

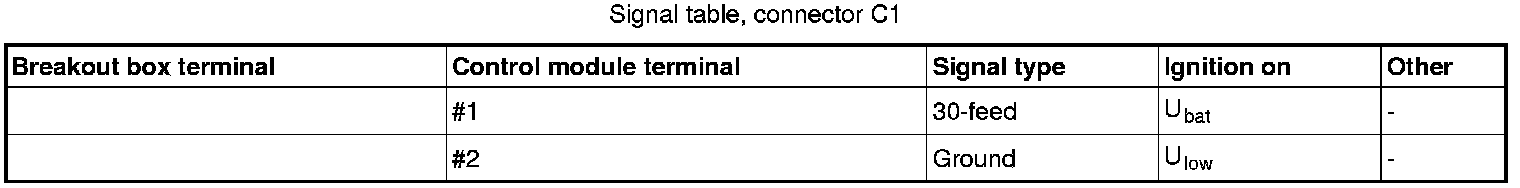

Connector C1

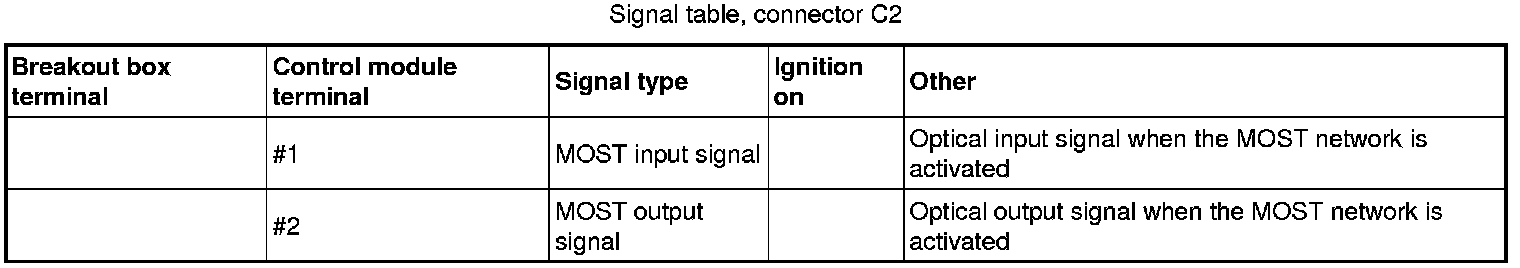

Connector C2

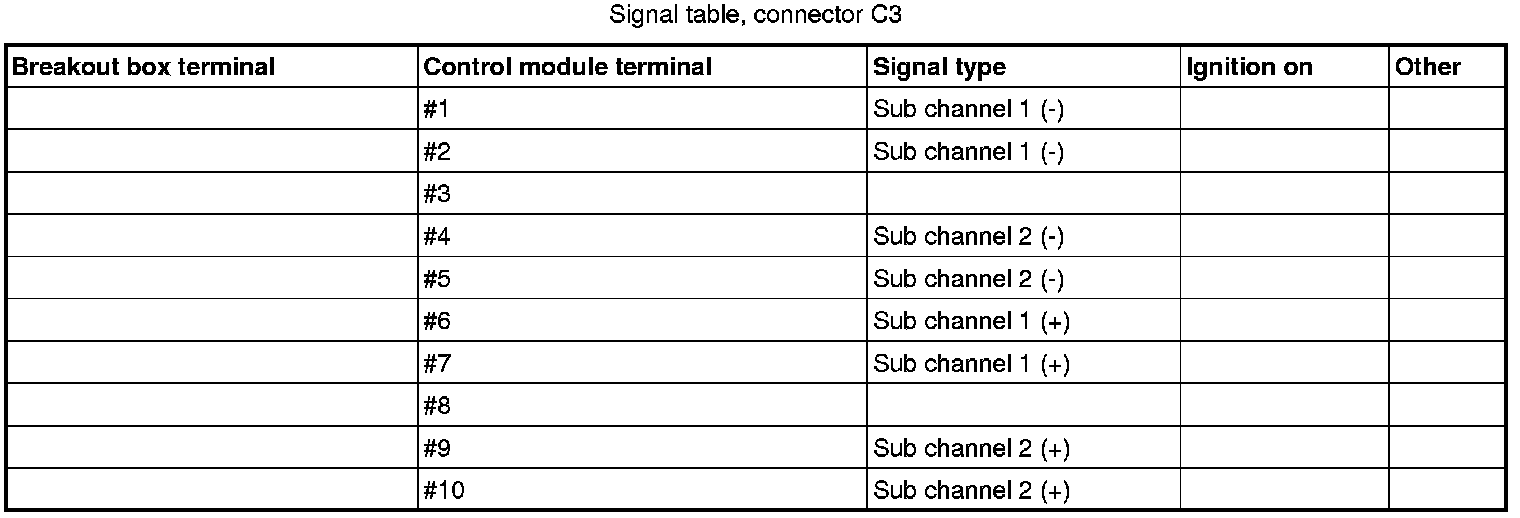

Connector C3
