Locking System Receiver

Locking system receiver

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

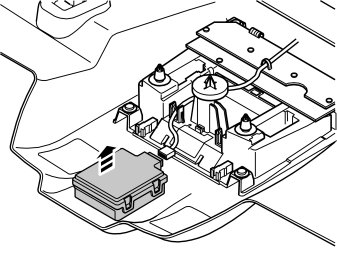

Removal of the remote receiver





Hint: The receiver is attached with velcro against the windshield panel.

Remove:
- upper windshield frame. Refer to: Header rail Trim Panel Header rail Trim Panel
- the connector
- the receiver.

Installation

Installation of the remote receiver

Install:
- the receiver
- the connector
- upper windshield frame. Refer to: Header rail Trim Panel Header rail Trim Panel

Function test
Test the function.
