Window Shade: Service and Repair

Sun blind, Rear door


















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Sun blind, Rear door




- Lower the side window.




- Open the back door.

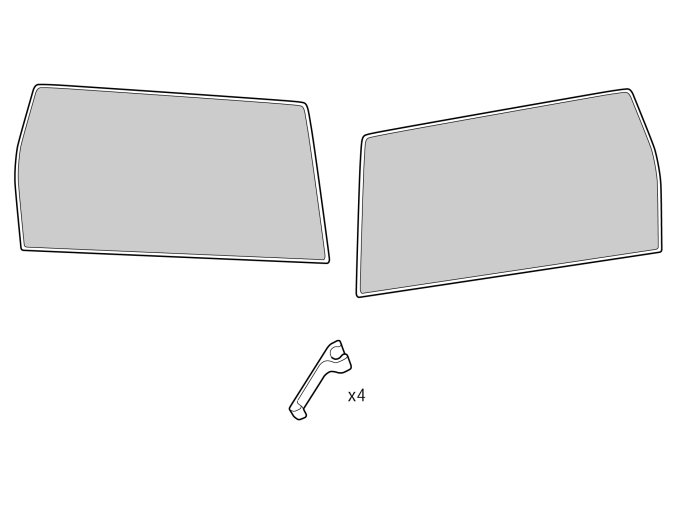

- Take two clips from the kit. Press the clips into place from the outside under the textile strip. The clips must be positioned as illustrated.

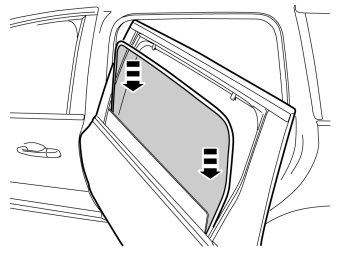

- Take the sun blind from the kit. From the outside insert it down inside the side window. The sun blind must be between the side window and the door panel.

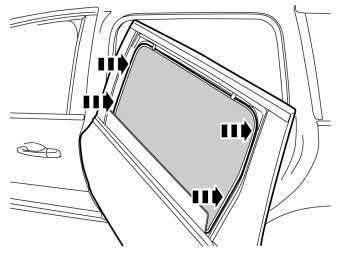

- Press the upper edge of the sun blind into the installed clips.




- Ensure to insert the ends of the sun blind so that they do not catch the side window when it is raised and lowered.

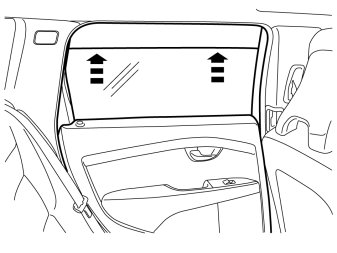

- Raise the side window.
- Repeat all steps for the other side.
