Rear Door Window Regulator: Service and Repair

Lift mechanism, rear door

Operation number: 83528-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the following items:
- panel. Refer to: Panel rear door Panel Rear Door

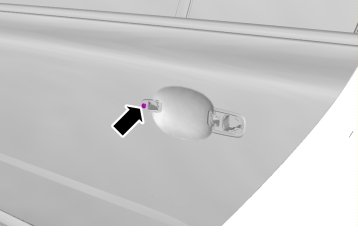

- handle. Refer to: Outer handle, rear door Service and Repair





Note! Do not loosen the bolts more than two turns.

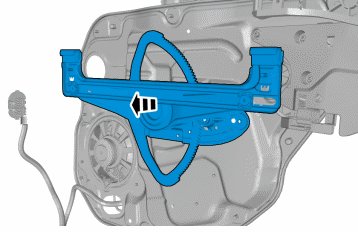

Torque: Window to power window mechanism (rear side door), 8 Nm

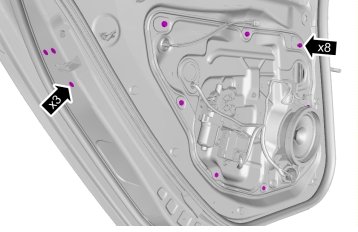

Torque: M6, 10 Nm

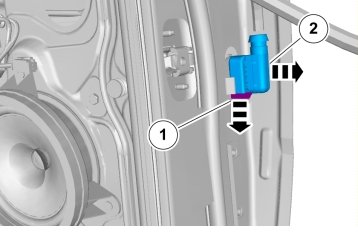

Torque: Door latch to door, 8 Nm
















Torque: M6, 10 Nm









Installation

To install, reverse the removal procedure.

Initiate the window lift using appropriate initialization procedure.
