Front Door Window Regulator: Service and Repair

Lift mechanism, front door

Operation number: 83526-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the window. Refer to: Window, front door. Service and Repair.
Remove the handle. Refer to: Handle outer door front Service and Repair.

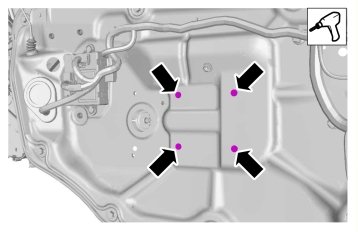

Torque: M6, 10 Nm

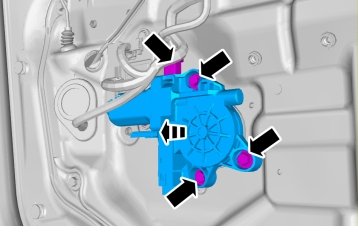

Torque: Door latch to door, 8 Nm

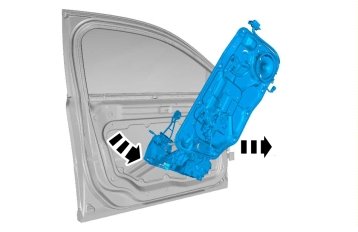

Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure

Initiate the window regulator using appropriate initialization procedure.
