Quarter Window Glass: Service and Repair

Side window fixed, rear

Operation number: 84404-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Place the adhesive in the oven.

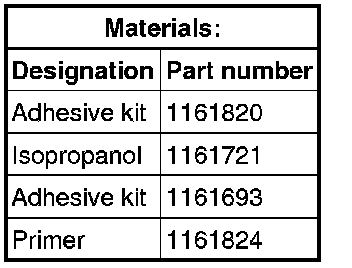

Use: Adhesive kit, 1161820

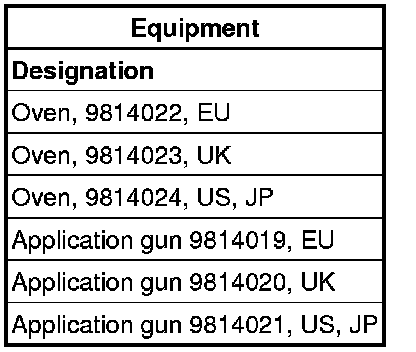

Use: Oven, 9814022, EU.
Use: Oven, 9814023, UK.
Use: Oven, 9814024, US, JP.

Remove the panel. Refer to: Panel, D-pillar Panel, D-Pillar

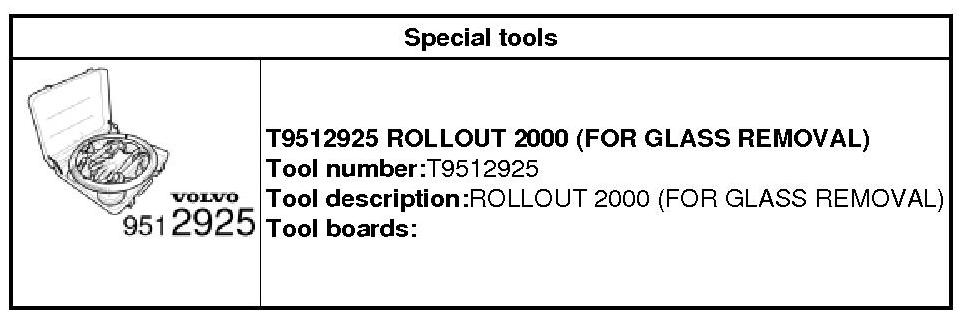

951 2925 Rollout 2000 951 2925 Rollout 2000

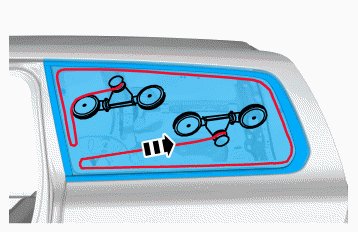

Insert both ends in the screwdriver.

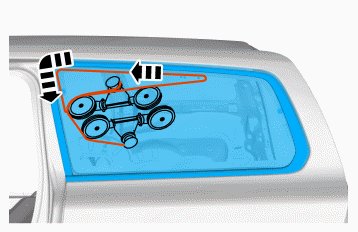

Release the winch from the window. Pull out the pin and move the winch. Hold the roller with your fingers so that the thread does not spin off.

Safety when using adhesive for panes. Refer to: Service Precautions

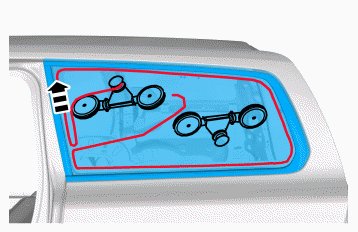

Cut away adhesive residue.
Clean:
Use: Isopropanol, 1161721

Clean the window.
Use: Isopropanol, 1161721

Installation

Alternative 1
Use: Adhesive kit, 1161693

Refer to: Bonded window general, information Service and Repair
Alternative 2
Use: Adhesive kit, 1161820

Apply activator on existing adhesive bead, wipe dry. If any part of the frame has been painted, the painted surface should be primed.
Use: Primer, 1161824

Apply activator to the window. Wipe dry.

Use: Application gun 9814019, EU.
Use: Application gun 9814020, UK.
Use: Application gun 9814021, US, JP.
Apply adhesive. The adhesive bead shall be 6 mm wide, 12 mm high.
Install the window within 10 minutes.

To install, reverse the removal procedure.
