Transfer Case Rear Seal

Transfer Case Rear Seal

Operation number: 43332-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

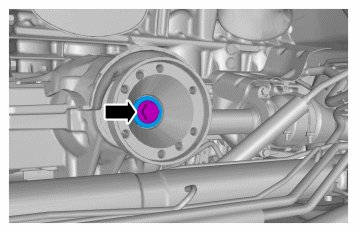

Remove the propeller shaft. Refer to: Propeller shaft, B6304T2, TF-80SC AWD Propeller Shaft Propeller shaft Propeller Shaft




Torque: M10, 50 Nm

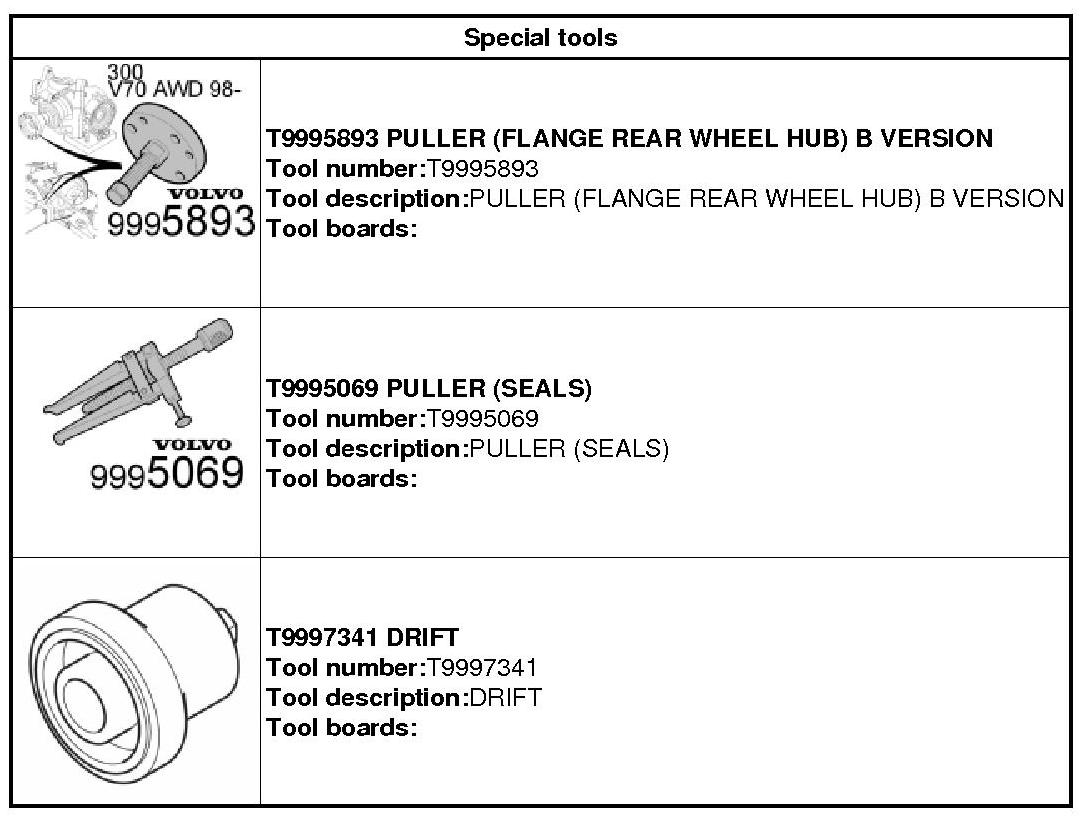

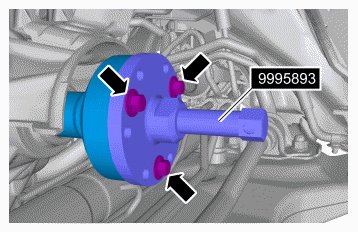

999 5893 Puller 999 5893 Puller





Note! Be prepared to collect escaping fluids.

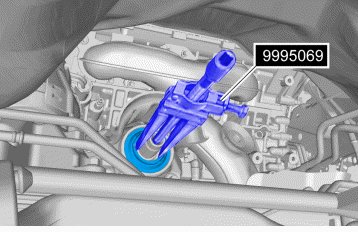

999 5069 EXTRACTOR 999 5069 Extractor

Installation

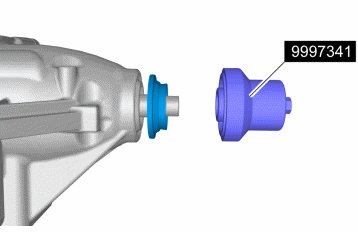

999 7341 Drift 999 7341 Drift

To install, reverse the removal procedure




Check the oil level in the bevel gear.
Use oil. Refer to: Lubrication transmission Tools and Equipment
Fill up oil to the oil filler plug. Suck out 0.1 l oil.
Torque: Oil filler plug, bevel gear, 35 Nm
