Transfer Case Connecting Sleeve Seals

Transfer Case Connecting Sleeve Seals

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Removing bevel gear
Remove the bevel gear. Bevel Gear

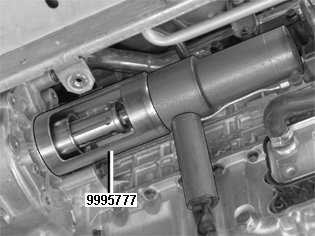

999 5777 Extractor 999 5777 Extractor
999 5777 Extractor 999 5777 Extractor

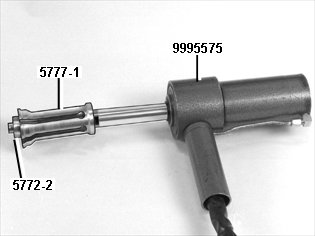

999 5575 PULLER CYLINDER USED WITH HYDRAULIC PUMP -5576 999 5575 Puller Cylinder Used With Hydraulic Pump -5576
999 5575 PULLER CYLINDER USED WITH HYDRAULIC PUMP -5576 999 5575 Puller Cylinder Used With Hydraulic Pump -5576
together with: 999 5576 HYDRAULIC PUMP 999 5576 Hydraulic Pump (foot operated)
Alternatively: 999 2615 Hydraulic pump 999 2615 Hydraulic Pump , which consists of puller cylinder and a compressed air powered hydraulic pump.





Note! Place a container under the transmission.









Installation

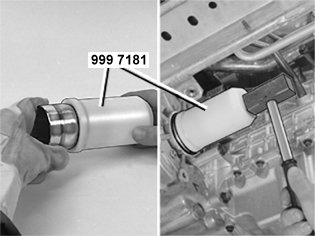

Heat the sleeve in an oven to 100-120 °C and place in: 999 7181 Drift 999 7181 Drift. Install on the transmission and tap in the sleeve until it reaches the differential.

Warning! Use protective gloves when handling the heated sleeve.

Warning! Wear ear protectors.

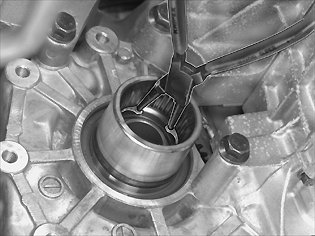

Cool the socket using compressed air.

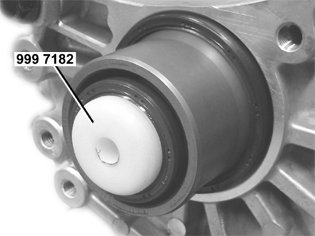

999 7182 Drift 999 7182 Drift.

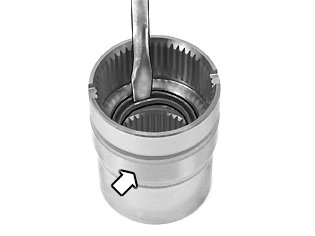

Carefully install both sealing rings.




999 7181 Drift 999 7181 Drift and tap in both the seals.





Installing the angle gear
Install the bevel gear. Bevel Gear


Checking the oil level
Check the transmission fluid level. Checking Oil Level
