Propeller Shaft Joint (CV)

Propeller shaft joint (CV)

Operation number: 4511-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

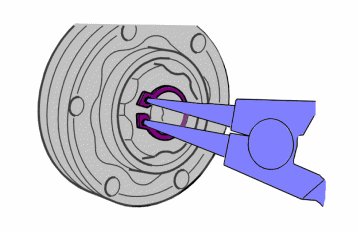

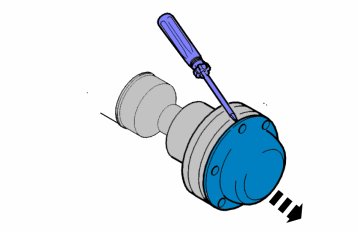

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the propeller shaft. Propeller Shaft

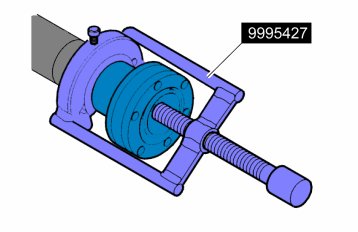

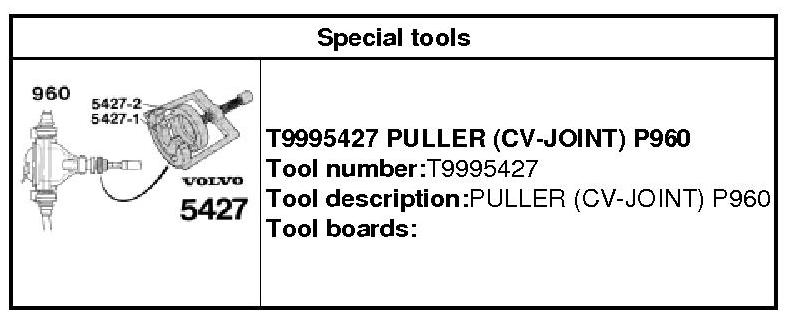

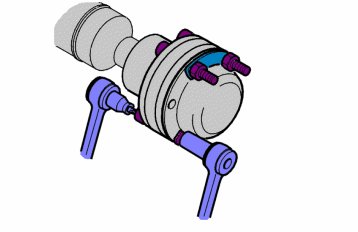

999 5427 PULLER 999 5427 Puller

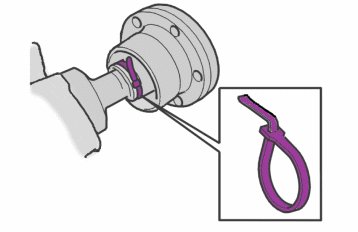

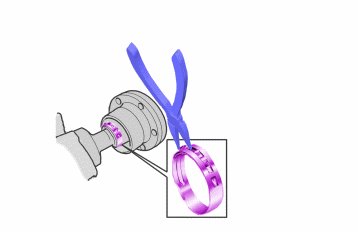

Installation





Caution! Be extra careful when handling this component.





Caution! Make sure that the gaskets are placed correctly.

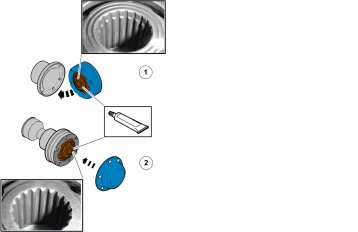

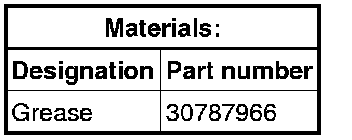

Use: Grease, 30787966

Caution! Use all of the supplied lubricant, with equal amounts on each side.









Install the propeller shaft. Propeller Shaft
