Wheels/Tires - Revised Wheel To Wheel Hub Torque
TIE - Technical JournalTitle Updated torque value, wheel to wheel hub
Ref No US23696.1.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North Marcia
Func Group 7710 Wheel and wheel trim
Status Released
Status Date 2010-12-06
Issue Date 2010-*12-02
Reference VIDA, VSTG
Attachment

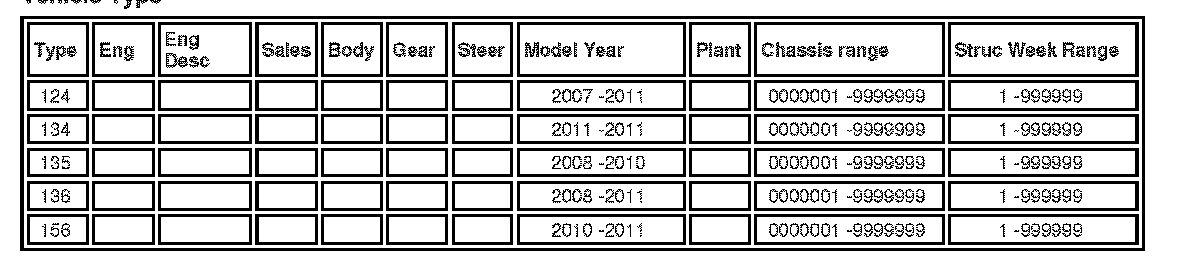

Vehicle Type

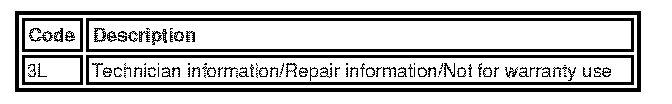

CSC
DTC
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
The information regarding the torque value on wheel to wheel hub stage 2 is wrong in VIDA.
PRODUCT MODIFICATION:
The updated service procedure will be included in VIDA 2011A.
VIDA path:
Removal replacement and installation
7 Springs and wheels
77 Wheels tyres hubs
771 Wheel and wheel trim
Wheel and wheel trim
SERVICE:

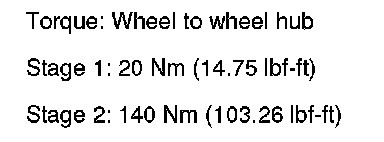

When tightening the wheel nuts the following final torque values must be applied.

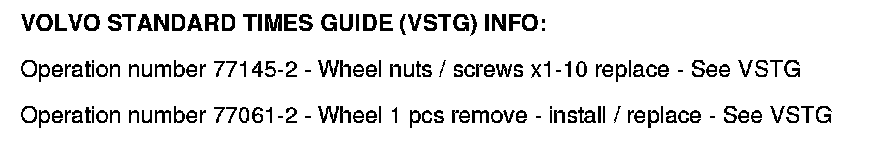

VOLVO STANDARD TIMES GUIDE (VSTG) INFO
