Suspension - Knocking/Rattling Noise From Front Struts

Retailer Technical Journal 20524

Front shock absorbers,

Metallic knocking noise

Date 04-02-2009

Reference: VIDA, VSTG

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

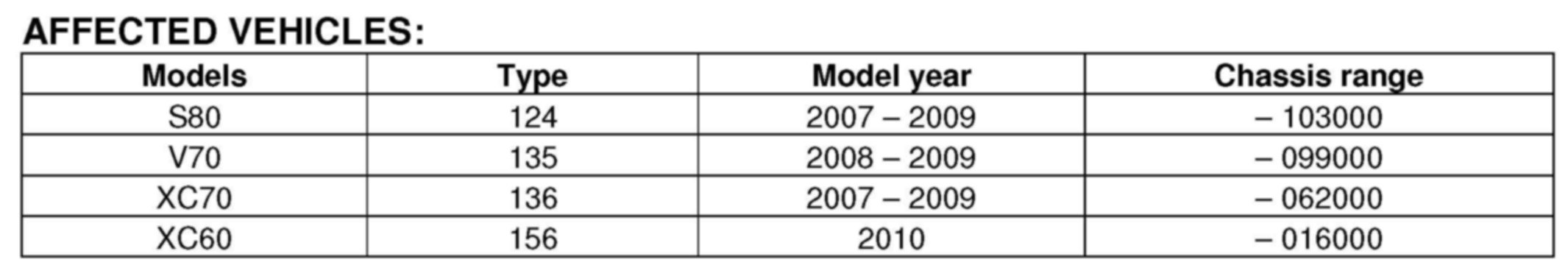

AFFECTED VEHICLES

DESCRIPTION:

A customer may complain of a metallic knocking or rattling noise from the front shock absorbers when driving on uneven roads.

SERVICE:

If possible, first verify that the noise is coming from the front shock absorber using Chassis Ear tool kit. If a shock absorber is found faulty, replace it according to VIDA:

INFORMATION

REPAIR

Removal, installation, and replacement

Suspension and steering

Front wheel suspension

Axle shaft, spring strut

Front Strut and Spring Assembly

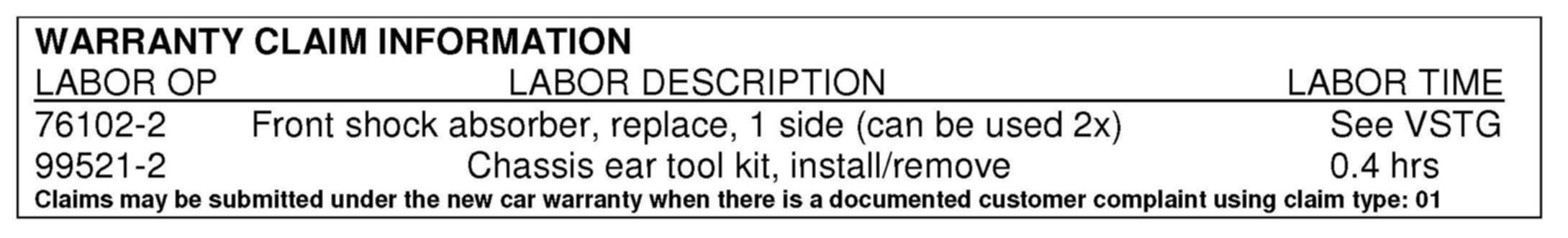

WARRANTY CLAIM INFORMATION
