Steering - Hissing/Rumbling Noises
Retailer Technical Journal 15213Power steering system,
Hissing / rumbling noise
Date 03-13-2009
Reference: VIDA
Note! If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
NOTE!
THIS DOCUMENT SUPERSEDES RETAILER TECHNICAL JOURNAL 19467
DATED 09-08-2008. RTJ 19467 has been split up into multiple RTJs in order to keep function group consistent. In RTJ 15213, the guidelines for steering column replacement have been modified. PLEASE UPDATE YOUR FILES.

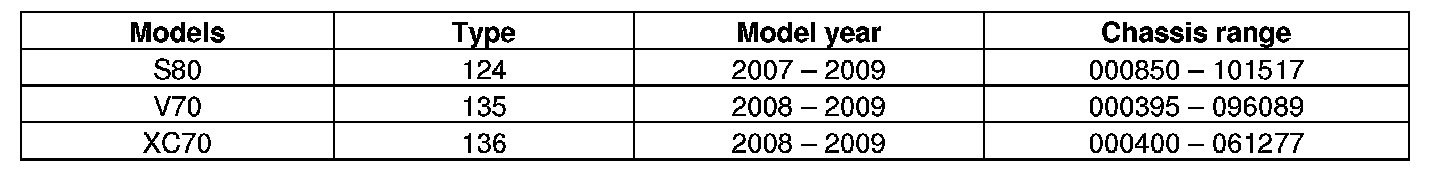

AFFECTED VEHICLES:
DESCRIPTION:
Customers may complain of either or both of two noises (listed below) from the power steering system. The noises could be coming from the steering gear and are routed into the passenger compartment via the steering column. Replacement of the steering gear will not solve the noise.
Customers may complain of a hissing noise from the steering column with the engine at idle and up to 1200-1500 RPM.
Customers may complain of a rumbling noise from the steering column around 30-40 KPH (19-25 MPH) on a cobblestone type road surface. The steering column starts to vibrate and then the rumbling noise starts.

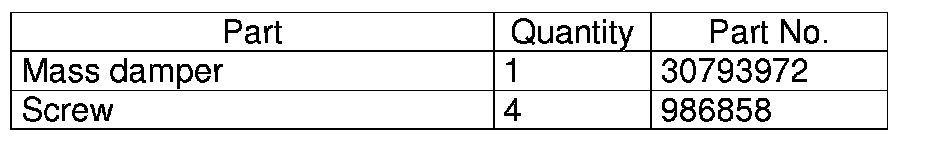

MATERIALS:
SERVICE:
MY 2007: Install a damping mass PN
30793972 using screws (4 x PN 986858) on
the steering column according to the picture.
Torque: 3 Nm = 2.2 ft.lbs. = 26.5 in.lbs.
Distance: 1 mm = .039 in
MY 2008 2009: Replace the steering column
according to VIDA:
INFORMATION
REPAIR
Removal, Replacement, and Installation
Suspension and Steering
Steering wheel, column lock, steering column, shaft
Steering Column

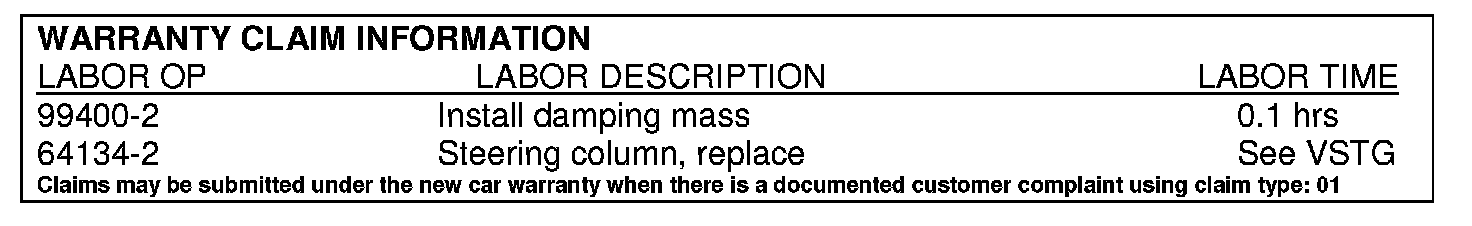

WARRANTY CLAIM INFORMATION
