Audio System - 'USB Unreadable' Message Displayed

Retailer Technical Journal 20607
ICM may show "Unreadable" when iPod is
chosen and connected

Date 02-19-2009

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

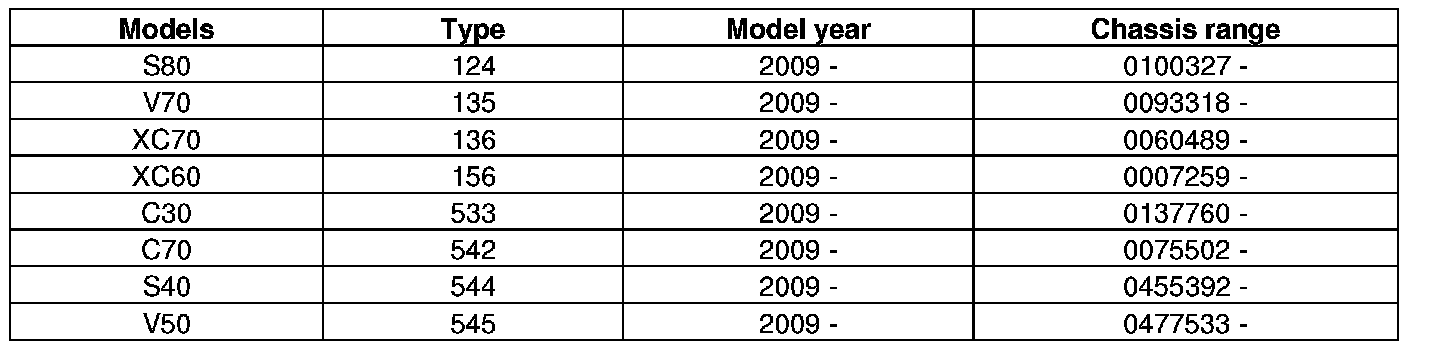

AFFECTED VEHICLES:

DESCRIPTION:

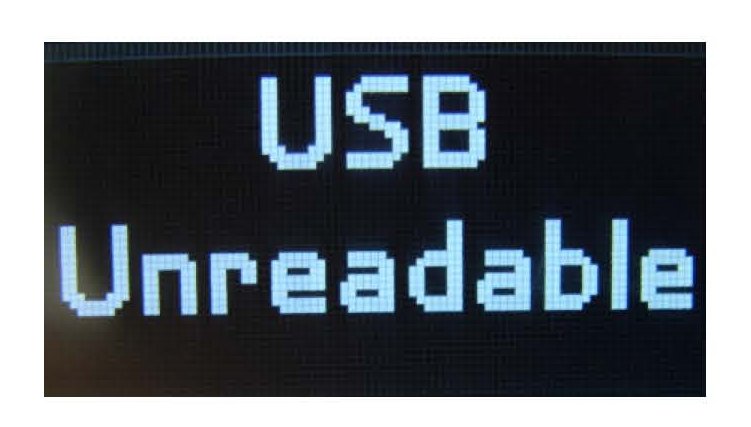

The ICM (Infotainment Control Module) message, "USB Unreadable", will occur if an iPod that is not supported by the IAM (Integrated Audio Module) USB / iPod interface is connected to the USB-connector. This document is valid only for the above listed vehicle types with IAM integrated USB/iPod support and HD radio. A separate document will be issued for the accessory installed AUU (Auxiliary USB Unit) when that information is available.

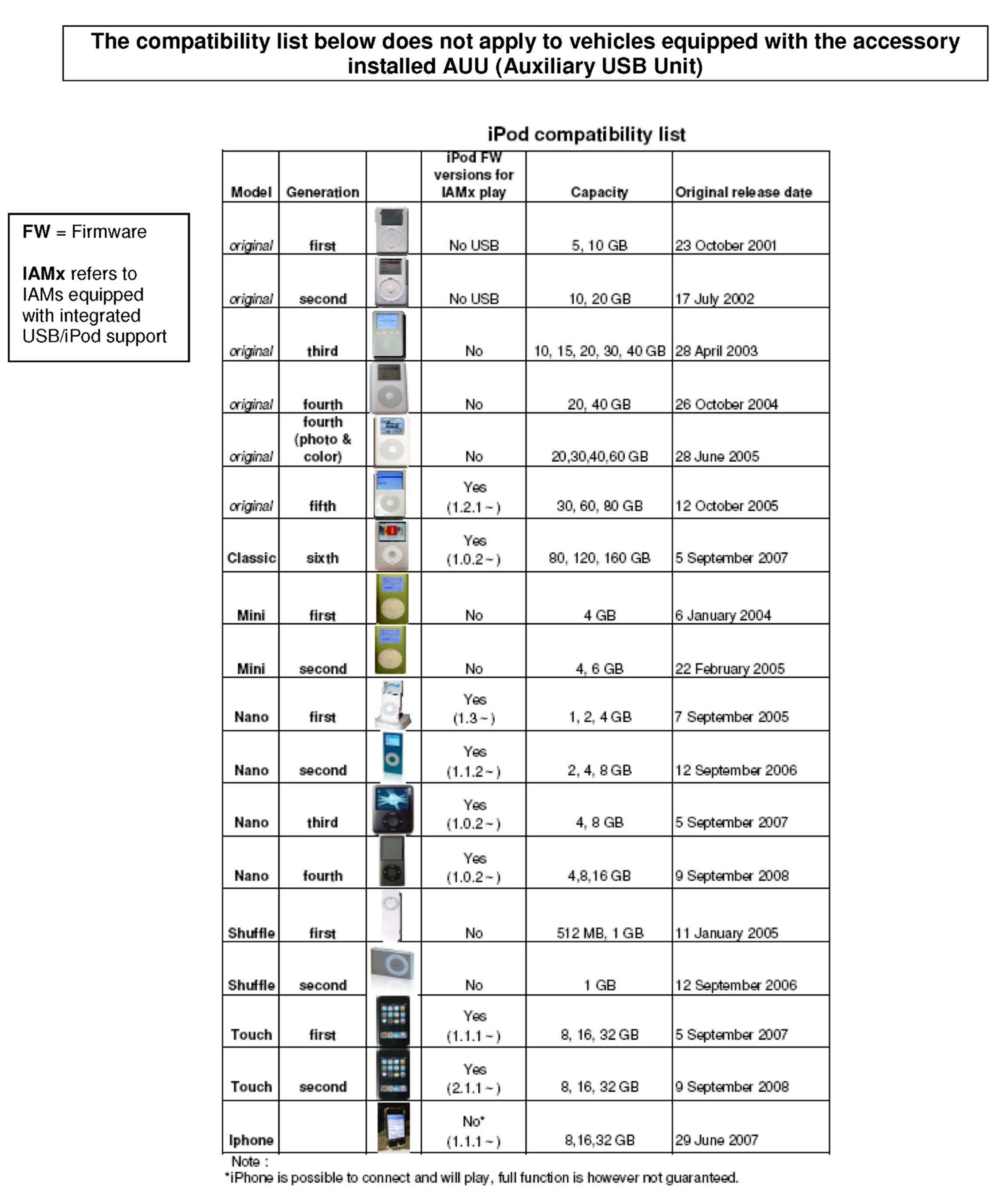

Please check the iPod compatibility with the list. The column "iPod FW versions for IAMx play" refers to whether or not the device is compatible.

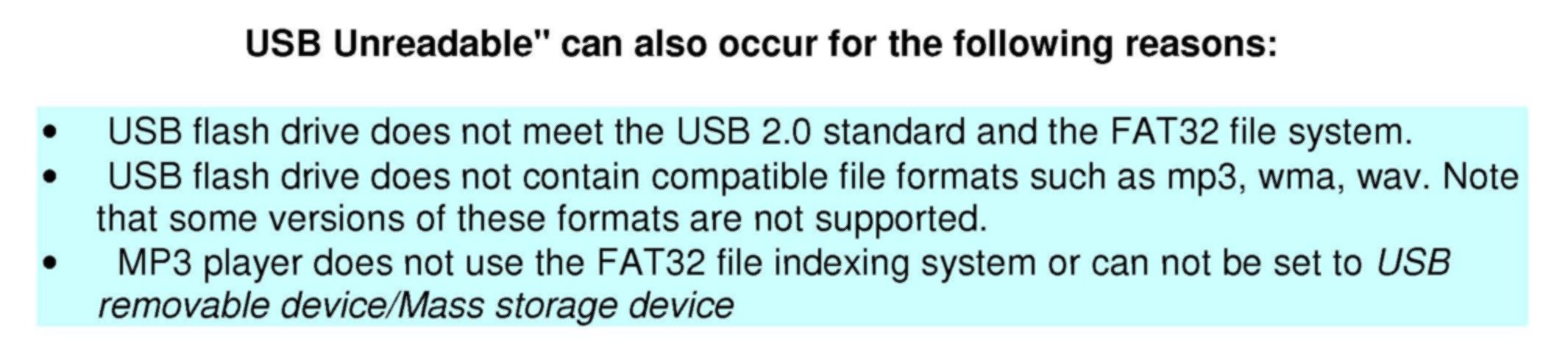

* See "USB unreadable" ICM message for additional reasons
