Stabilizer Bar: Service and Repair

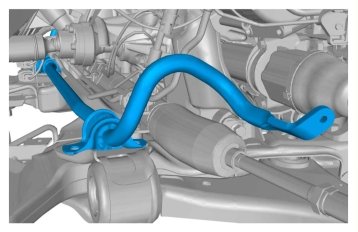

Front Stabilizer Bar

Operation number: 76202-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the upper torque rod. Refer to: Upper torque rod, B6304T2 Upper Torque Rod

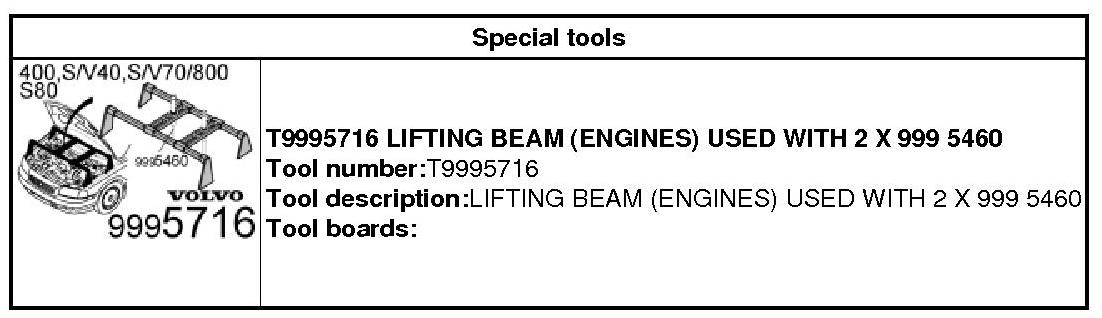

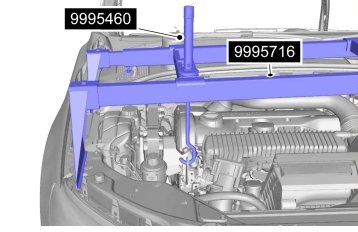

999 5716 Reading off tool 999 5716 Reading Off Tool

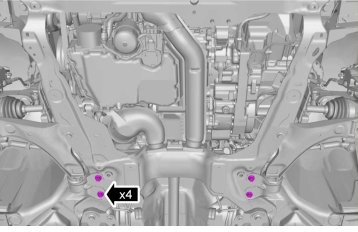

Torque: Lower arm front to subframe (rear mounting), 175 Nm

Lower the sub-frame. Refer to: Front subframe Front Subframe





Installation

To install, reverse the removal procedure
