Steering Arm Outer

Steering arm outer

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the front wheel. Service and Repair





Caution! Make sure that the ball joint ball does not rotate.

Torque: Track rod end to track rod, 90 Nm

Torque: Tie rod end to wheel knuckle, 80 Nm




951 2945 Puller 951 2945 Puller.

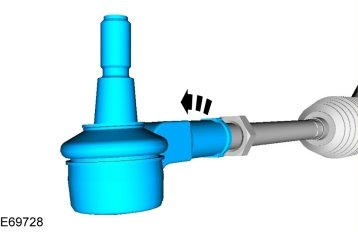

Note! Make sure that the tie rod end is installed with the same number of turns as when removed.

Installation

To install, reverse the removal procedure

Check the toe setting. Refer to: Wheel angles, check Service and Repair.
