Inner Side Link Ball Joint

Inner side link ball joint

Operation number: 64310-2






Removal

Note! Removal steps in this procedure may contain installation details.

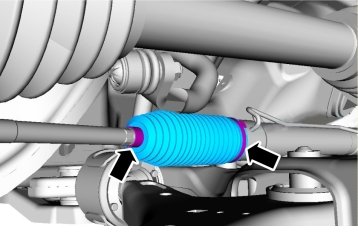

Remove steering joint outer. Steering Arm Outer

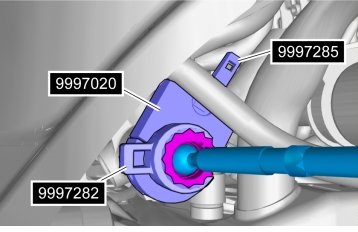

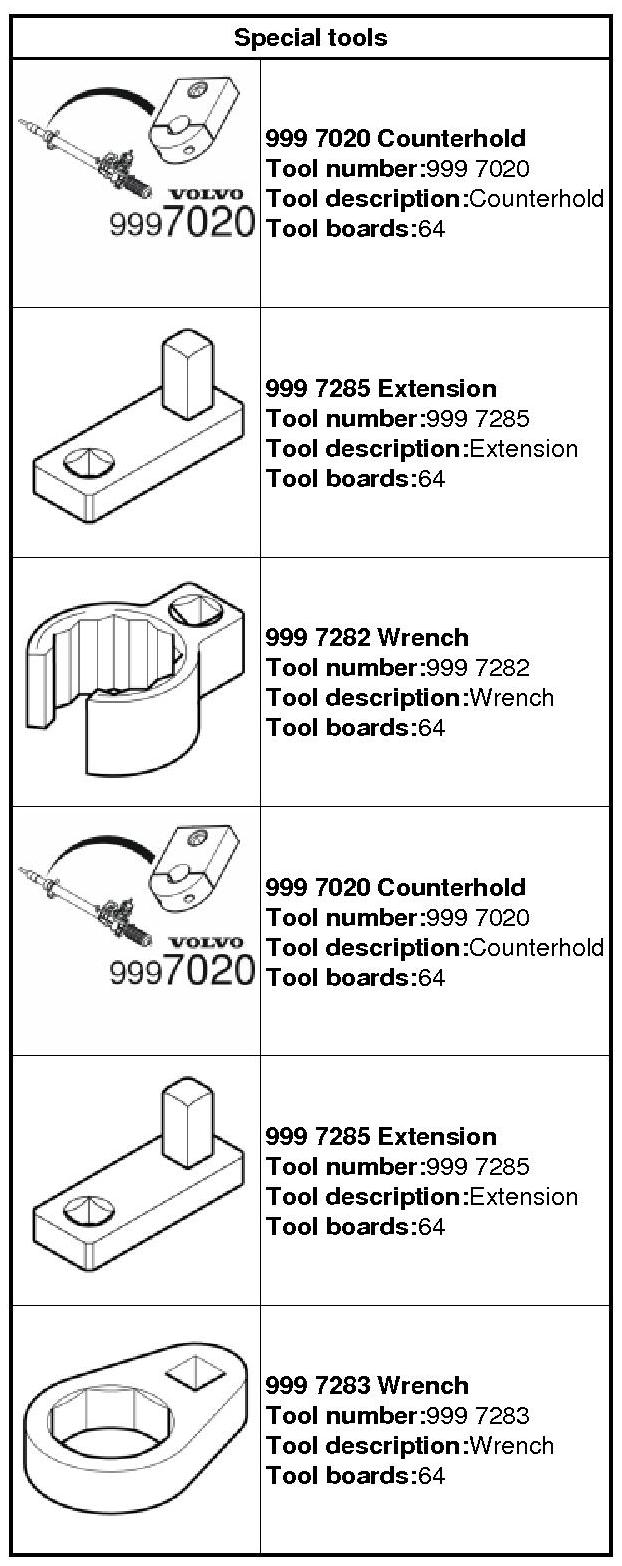

999 7020 Counterhold 999 7020 Counterhold
999 7285 Extension 999 7285 Extension
999 7282 Wrench 999 7282 Wrench

Torque: Inner steering joint for steering gear, 110 Nm

Vehicles with variable assist power steering (VAPS)

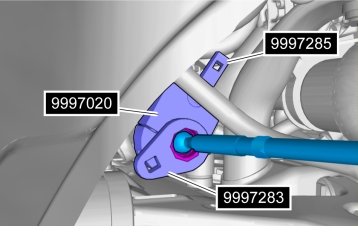

999 7020 Counterhold 999 7020 Counterhold
999 7285 Extension 999 7285 Extension
999 7283 Wrench 999 7283 Wrench

Torque: Inner steering joint for steering gear, 110 Nm

All vehicles

Installation

To install, reverse the removal procedure.
