Starting System: Service and Repair

Alcohol lock

































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Alcohol lock

Note! Some steps in these installation instructions are presented with illustration only.




- Activate (and calibrate) the alcohol lock according to the description in the Technical Journal in TIE. Relevant journal is TJ 19265 "Alcoguard, calibration and activation software, AWARD v.6.x.x". The necessary software can also be found there.

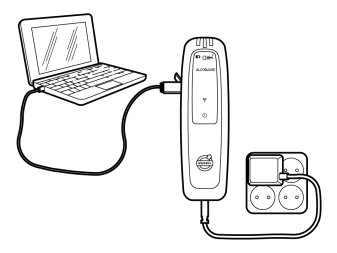

- After installing the software on a PC according to the TJ, connect the alcohol lock to the PC using the supplied communication cable. A question asking whether to activate appears automatically (if the lock is not activated), otherwise nothing special happens.

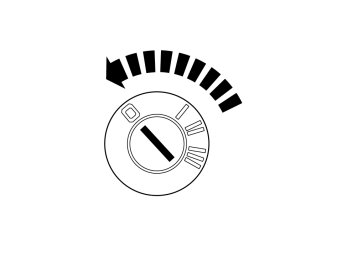

- Turn the ignition switch to position 0.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.




- Remove the tunnel console's right-hand side panel by carefully pulling it away starting at the rear edge. It is secured with five clips on the inside.




- Remove the two screws from the reverse of the center console.

Illustration A





Illustration B




- Drill a -9 mm (33/64") hole in the panel in front of the center console as illustrated. Predrill first using a smaller drill bit. Use a drill stop.
- Remove any swarf.

Illustration A




- Remove the cradle from kit. Insert the connector with cable into the drilled hole.

Illustration B




- Route the cable on the right-hand side of the tunnel console. If it is difficult to route, bend a thin piece of wire and insert it to route the cable through (Image B).




- Tighten the cradle using the existing screws.




- Tighten the cradle's left end using self-tapping screws from the kit.




- Place the loose end on the cover's spring in the corresponding lug in the cradle.

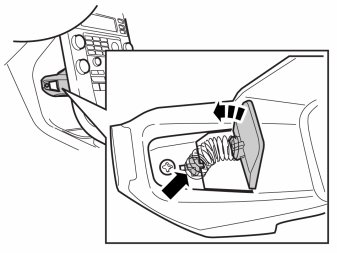

- Press the cover over the screw so that the spring engages in the cradle's lug.




- Press the handheld unit in the holder.




- Remove the bolts of the panel underneath the glovebox and remove it.




- Take the cable harness from the kit. Route it in front of the carpet and behind the strut for the center console.
- Connect both the connectors for the cable harnesses to each other.

Illustration A




- Detach the Velcro strip from the long rolled up black cable. Pull up the cable in front of the air duct and in through the hole at the upper edge of the glovebox's left front corner.

Illustration B




- Route the cable through the hole.




- Disconnect the green connector for the glovebox lighting, at the upper edge of the fuse holder's right side.




- Connect the glovebox lighting's green male connector (1) to the female connector (2) in the routed adapter cable.
- Connect the remaining male connector (3) in the adapter cable to the glovebox lighting's green female connector.
- Hide the excess cable inside the carpet.




- Pull the excess of the black cable into the glovebox, roll up and secure it using the Velcro strip.

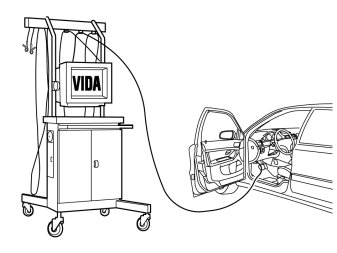

- Download the software for the accessory's function.
