Engine Compartment Distribution Box

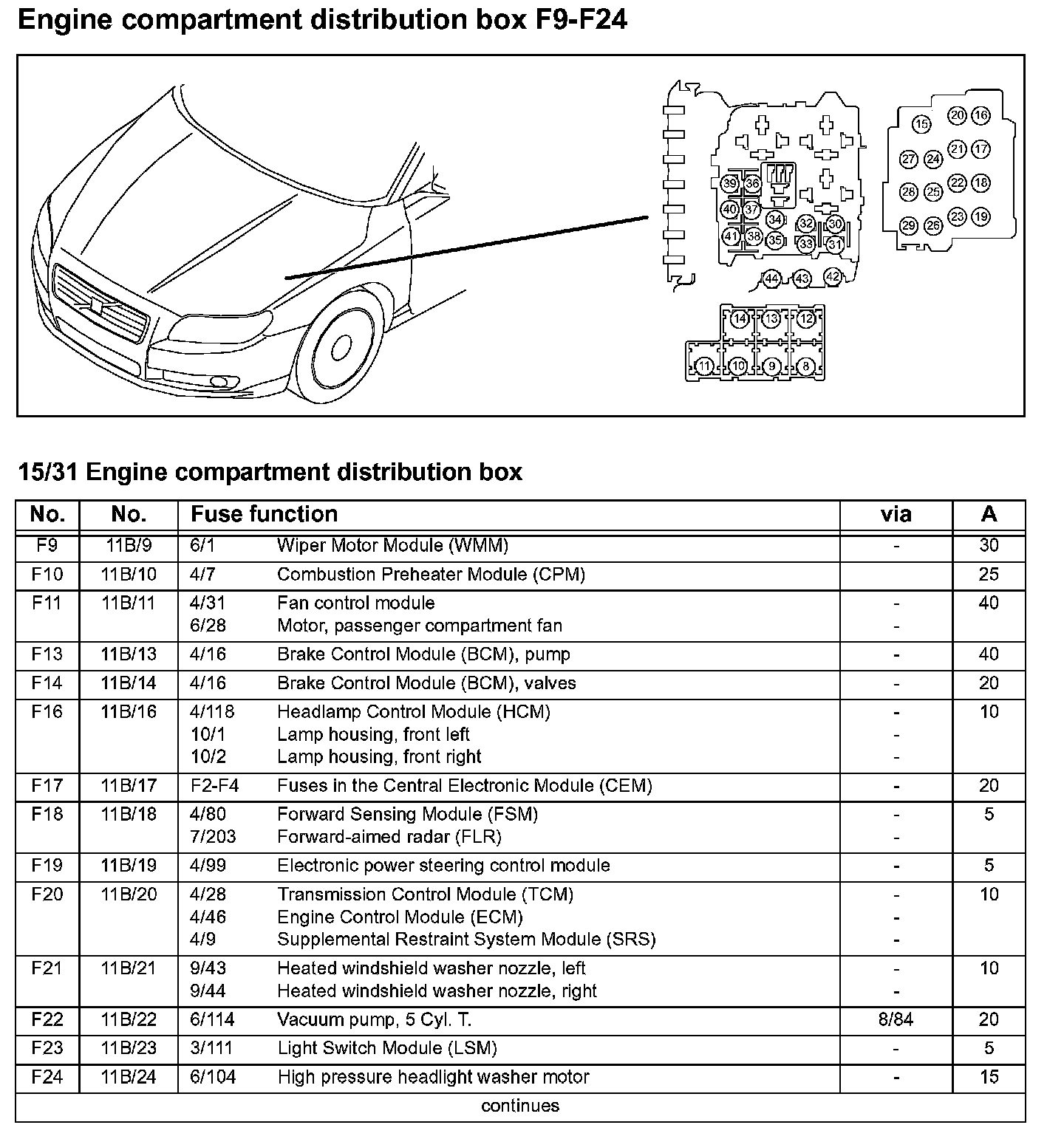

Engine Compartment Distribution Box F9-F24:



Engine Compartment Distribution Box F25-F30:



Engine Compartment Distribution Box F31-F37:



Engine Compartment Distribution Box F38:
