Tightening Torque

Tightening Torque

Torque: Drain plug oil pan, 38 Nm

Torque: Center bolt, exhaust camshaft
Stage 1: 75 Nm
Stage 2: 90 degree

Torque: Center bolt, intake camshaft, 110 Nm




Torque: Cylinder head
Stage 1: 45 Nm
Stage 2: 45 Nm
Stage 3: 90 degree
Stage 4: 180 degree

Torque: Subframe to chassis (Rear screws)
Stage 1: 150 Nm
Stage 2: 90 degree

Torque: Subframe to chassis (Front screws)
Stage 1: 150 Nm
Stage 2: 90 degree

Torque: Sockets, cylinder bolt , 10 Nm

Torque: Inner timing cover, adjuster screw, 3 Nm

Torque: Chain wheel, 400 Nm

Torque: Knock sensor, 20 Nm

Torque: Piston cooling nozzle, 32 Nm

Torque: Console auxiliary unit, 50 Nm

Torque: Bracket engine mounting to cylinder head, 80 Nm

Torque: Intermediate shaft alternator side, 40 Nm




Torque: Intermediate section for engine block step 1
Stage 1: 5 Nm
Stage 2: 30 Nm




Torque: Intermediate section for engine block step 2 , 5 Nm




Torque: Intermediate section for engine block step 3, 25 Nm




Torque: Intermediate section for engine block step 4 , 105 degree




Torque: Intermediate section for engine block step 5 , 25 Nm

Torque: Engine support insulator left , 175 Nm

Torque: Lower torque rod , 110 Nm

Torque: Plug the cylinder block, 38 Nm

Torque: Belt pulley auxiliary unit, 60 Nm

Torque: VVT unit, center screw, 30 Nm

Torque: Gear housing
Stage 1: 10 Nm
Stage 2: 24 Nm

Torque: Cap connecting rod
Stage 1: 12 Nm
Stage 2: 20 Nm
Stage 3: 90 degree

Torque: Upper torque rod to spring strut turret, 110 Nm

Torque: Upper torque rod to engine mount bracket, 110 Nm

Torque: Cover oil filter, 25 Nm

Torque: Fuel pump to tank, 85 Nm

Torque: Mounting screw, control valve, high pressure pump
Stage 1: 4 Nm
Stage 2: 7 Nm

Torque: Catalyst monitor sensor, 45 Nm

Torque: Turbo to exhaust manifold
Stage 1: 5 Nm
Stage 2: 30 Nm

Torque: Radiator to condenser, 5 Nm

Torque: Spark plug, 28 Nm

Torque: Intake Manifold (M7), 17 Nm

Torque: Exhaust Manifold (M8), 24 Nm




Torque: Camshaft Cover Screws (1-9), Full contact
Tighten the camshaft cover crosswise, a few turns at a time, towards the cylinder head.




Torque: Camshaft Cover Screws (1-27), 17 Nm




Torque: Camshaft Cover Screws (28-60), 17 Nm

Torque: Coolant pump bolts (M6), 10 Nm

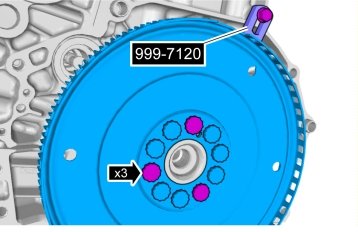

Torque: Flexplate, 80 Nm




Torque: Flexplate, 80 Nm




Torque: Flexplate, 80 Nm




Oil Pump Installation
1. Press in the pin
2. Press the oil pump towards the crankshaft pulley
3. (M7 bolt), 17 Nm
4. (M6 bolt), 10 Nm
