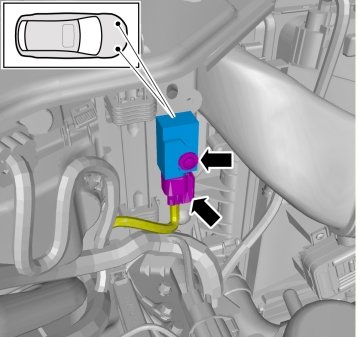

Collision Sensor

Collision sensor

Operation number: 88454-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.




Disconnect the battery ground cable. Refer to: Battery Disconnecting

Remove the headlamp. Refer to: Headlamps Headlamps.




Torque: Impact sensor to body, 6 Nm

Installation

To install, reverse the removal procedure.
