Seat Belt Retractor, Rear

Seat belt retractor, rear

Operation number: 88404-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Information about handling and storage of pyrotechnic SRS components. Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Disconnect the negative battery lead. Refer to: Battery Disconnecting

Remove the following items:
- side panel. Side Panel Loadspace
- seat cushion. Seat Cushion, Rear Seat
- seat bolster.

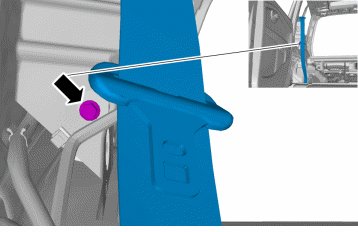

Torque: Safety belt retractor rear to body, 40 Nm

Detach the connector. Refer to: Quick-Release Connector Belt




Torque: Safety belt retractor rear to body, 40 Nm

Installation

To install, reverse the removal procedure.

Check the seat belt function. Refer to: Seat belt function, check Testing and Inspection.

Carry out an inspection. Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
