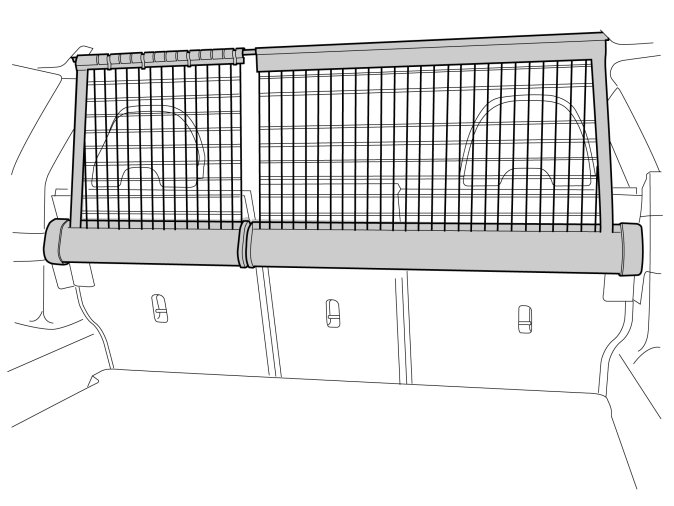

Safety Net, Nylon

Safety net, nylon





















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Safety net, nylon

Installation




- Fold down the rear backrest.

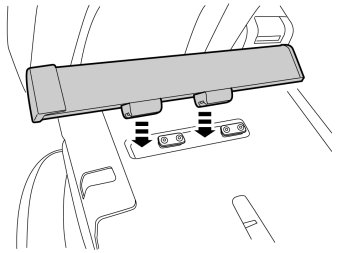

- Place the holder for the left-hand cassette (the shorter) to the left of the backrest's load retaining lugs, and position it against the backrest.

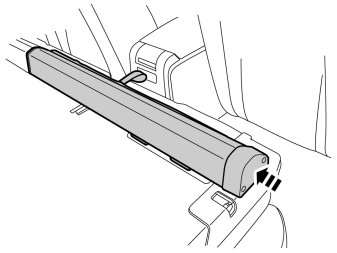

- Slide the cassette over the lugs towards the stop.

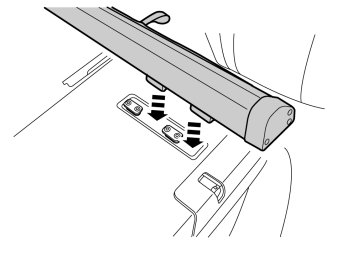

- Place the right-hand cassette's holder to the right of the backrest's load retaining lugs, and position it against the backrest.




- Slide the cassette over the lugs towards the stop.

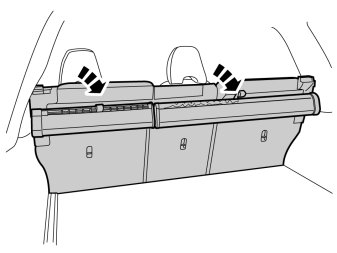

- Fold up the backrest.

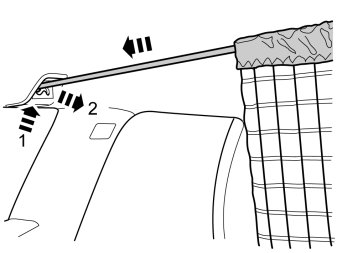

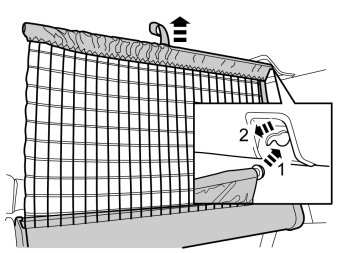

- Pull up the net for the right-hand cassette. Insert the end of the rod into the hole (1) in the mounting in the cant rail, and position the end at the front edge (2) of the mounting.




- Pull out the telescopic rod and position its left end in the mounting in the same way as for the right-hand side.

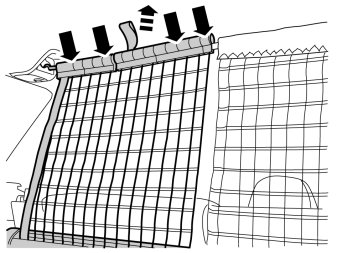

- Pull up the left-hand cassette's net and hook the net's hooks around the rod.
- Ensure that the hooks engage around the rod.
- Check that both ends of the rod are correctly positioned in the front edge of the holders in the cantrail.

Removal
- First unhook the left-hand net from the telescopic rod and allow it to roll in. Then remove the telescopic rod's left-hand mounting from the cantrail's mounting. Press in the telescopic arm, remove it from the right-hand mounting and allow the net to roll in.
