Driver's Airbag

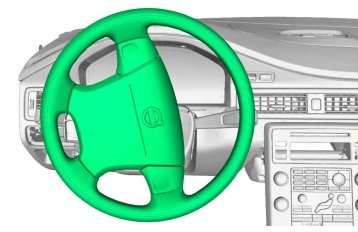

Driver's airbag

Operation number: 88425-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

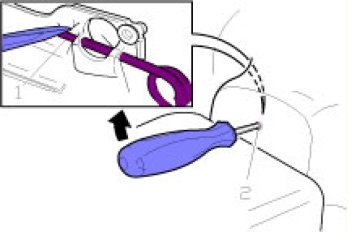

Removal

Note! Removal steps in this procedure may contain installation details.

Disconnect the negative battery lead. Refer to: Battery Disconnecting

Warning! For information about the handling and storage of pyrotechnic SRS units. Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part.

Refer to: Positioning safety labels (North America) or Refer to: Positioning safety labels (other countries).

Warning! Never take readings using an ohmmeter or any other measuring instrument on a disconnected, non-deployed pyrotechnical SRS unit.

Warning! A pyrotechnical SRS unit must never be unscrewed, repaired or moved to another vehicle.

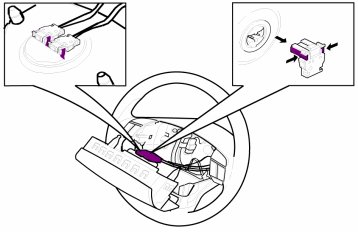

Remove the connector.

Installation

To install, reverse the removal procedure

Carry out a post check. Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection.
