Procedures

Throttle body, cleaning

Operation number: 25121






Removal

Remove the throttle body Refer to: Throttle body Removal and Replacement Throttle body, B6304T2, TF-80SC AWD Removal and Replacement

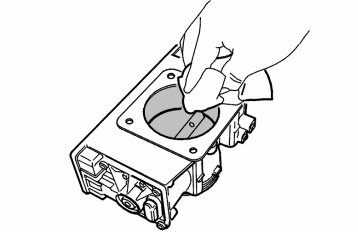

Caution! Make sure that the surface is clean and free of foreign material.

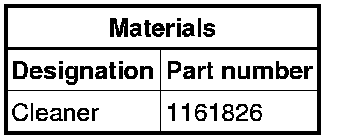

Use: Cleaner, 1161826





Caution! Take extra care when handling the component.

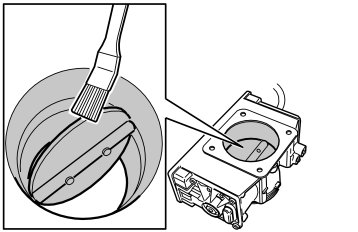

Note! Make sure that the component is clean and free of foreign material.

Install throttle body Refer to: Throttle body Removal and Replacement Throttle body, B6304T2, TF-80SC AWD Removal and Replacement
