Metal Pedals

Metal pedals

























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Metal pedals




- Clean if necessary.




- Take the accelerator pedal cover (A) from the kit.

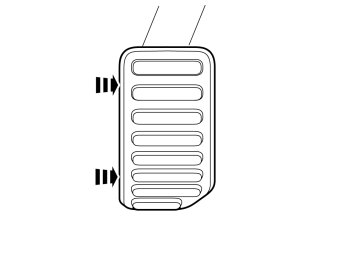

- Hook the cover onto the long side of the accelerator pedal.

A

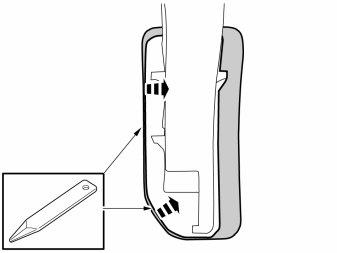

- Press the cover against the pedal at the same time as folding the cover's edges over using a weatherstrip tool.
- Check, using a mirror, that the edges of the cover have covered the pedal.
- Pull at the cover and check that it is secure.

B

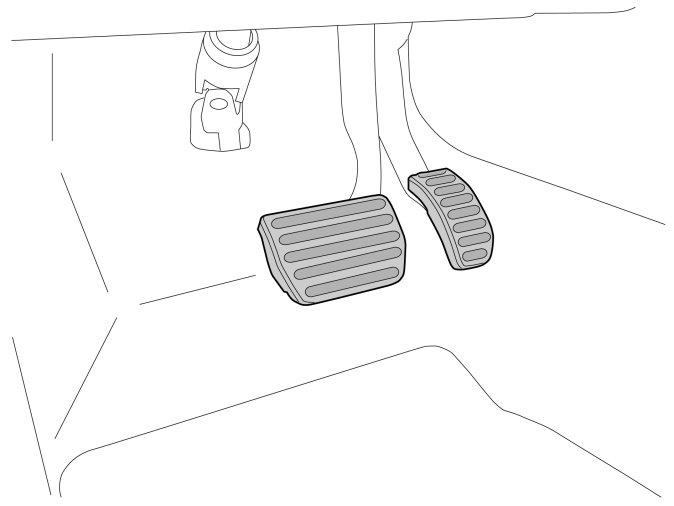

Applies to cars with an automatic transmission

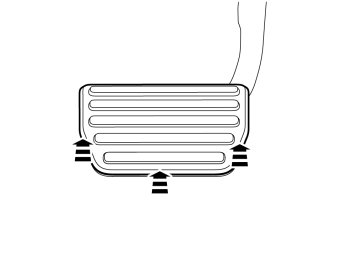

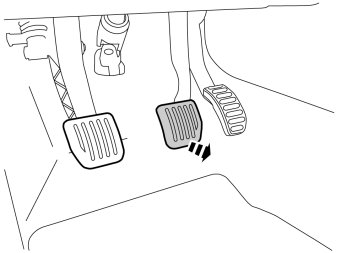

- Remove the pedal cover by grasping at the lower edge and pulling off at the rear edge.

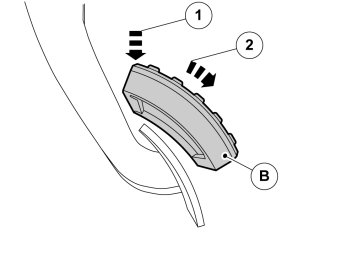

- Take the brake pedal cover (B) from the kit.
- Hook the cover on at the upper edge.

A

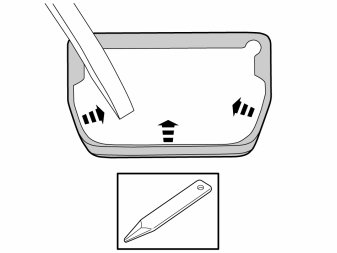

- Press the cover against the pedal at the same time as folding the cover's edges over using a weatherstrip tool.
- Check, using a mirror, that the edges of the cover have covered the pedal.
- Pull at the cover and check that it is secure.

B






Applies to cars with manual gearbox




- Remove the pedal cover by grasping at the lower edge and pulling off at the lower edge.




- Take the brake pedal cover (C) from the kit.
- Hook the cover on at the upper edge.

A




- Press the cover against the pedal at the same time as folding the cover's edges over using a weatherstrip tool.
- Check, using a mirror, that the edges of the cover have covered the pedal. Pull at the cover to check that it is secure.
- Repeat the steps for the clutch pedal.

B
