Oil Filter: Service and Repair

Oil filter

Operation number: 22217-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Warning! Hot fluid.

Note! Removal steps in this procedure may contain installation details.

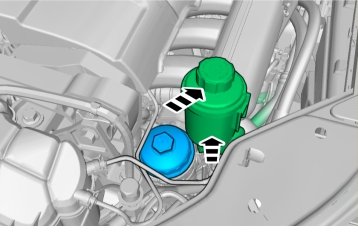

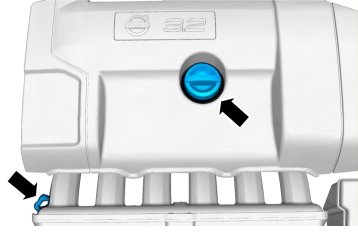

The oil filter cover must be loosened before all oil can be drained.




Torque: Cover oil filter, 25 Nm





Raise the vehicle. Locations









Warning! Be prepared to collect escaping fluid.

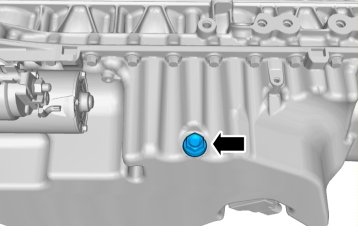

Torque: Drain plug oil pan, 38 Nm

Installation

To install, reverse the removal procedure




Fill with oil. [1][2]Capacity Specifications

Start the engine and check the oil level and check for any leaks. Top up as necessary, but do not overfill.
