Cabin Air Filter / Purifier: Locations

Climate units

Note! Some variation in the illustrations may occur, but the essential information is always correct.

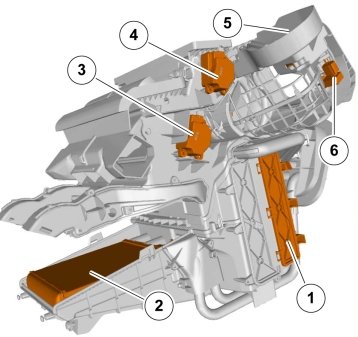

Climate Units - Location Of The Climate Control Unit Components (Part 1):

Location of the climate control unit components:
- (1) Cabin air filter
- (2) Heat exchanger
- (3) Damper motor module (DMM), air distribution right-hand side
- (4) Damper motor module (DMM), defroster
- (5) Damper motor module (DMM), recirculation
- (6) Air quality sensor (AQS)
