Running / Parking Lights, Tail Lights

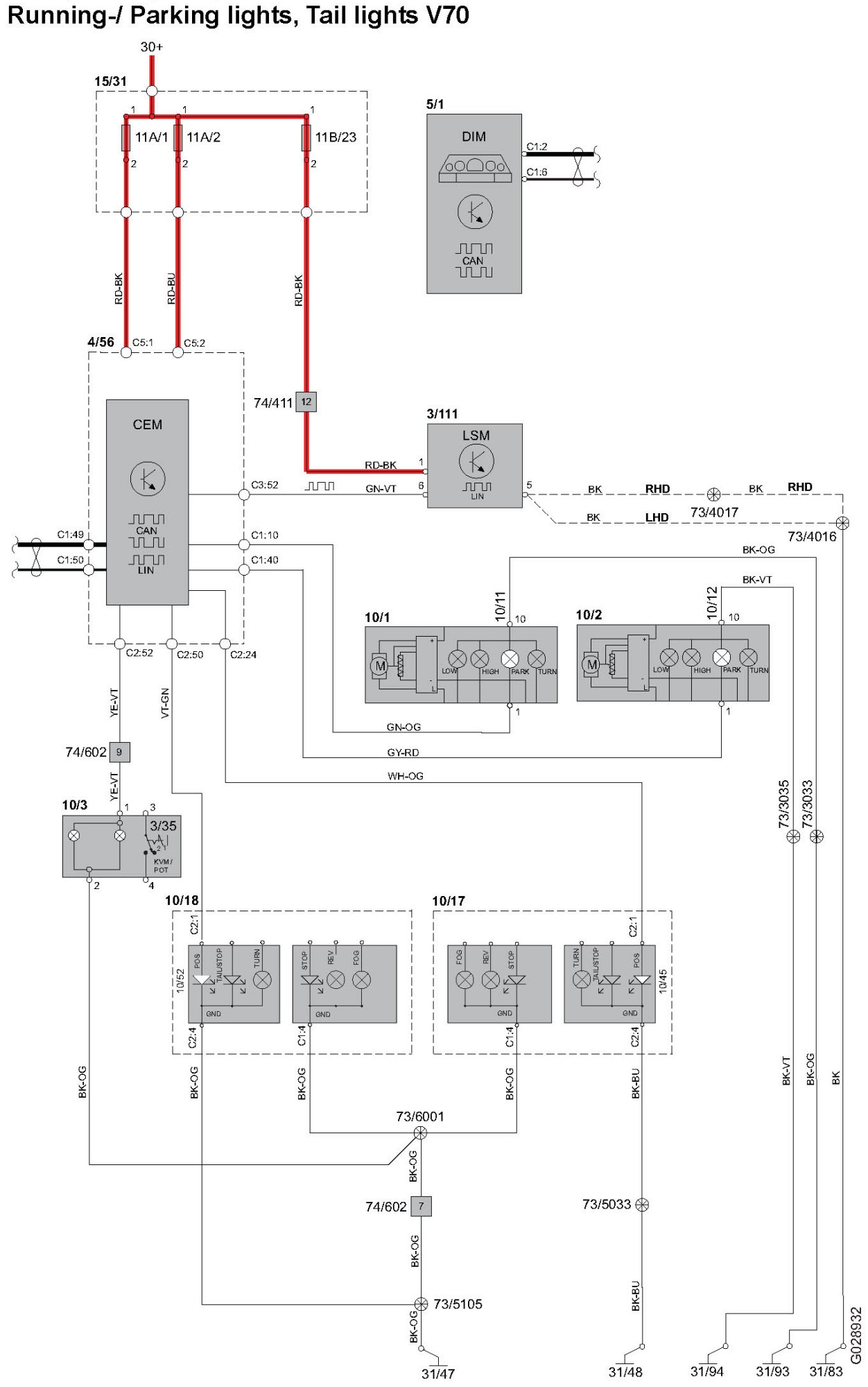

Running-/ Parking Lights, Tail Lights V70

Running-/ Parking Lights, Tail Lights:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
