Receiver Dryer: Service and Repair

Receiver drier

Operation number: 87410-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Drain the refrigerant from the air conditioning system. Refer to: Refrigerant, draining Refrigerant, Draining.












Torque: M6, 10 Nm

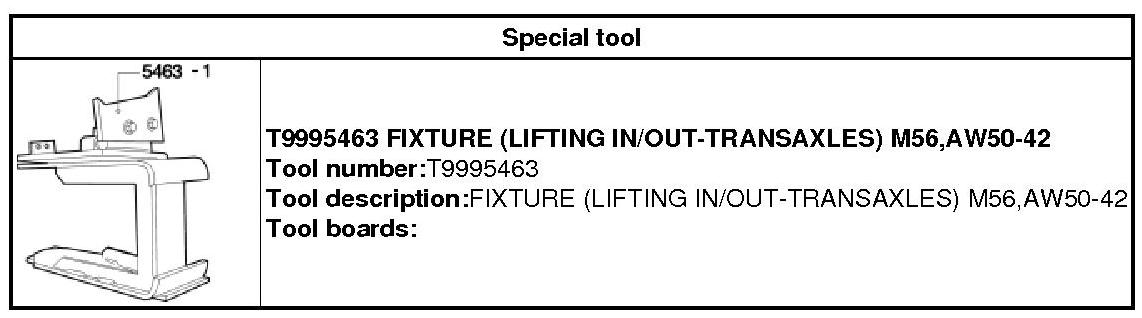

999 5463 FIXTURE 999 5463 Fixture.

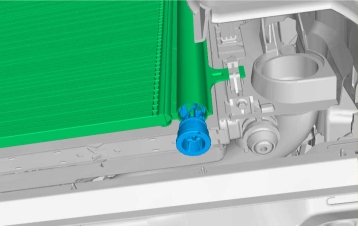

Torque: Drier filter, 11 Nm

Installation

Change and lubricate the O-rings with compressor oil.

To install, reverse the removal procedure

Vacuum pump the air conditioning system. Refer to: Vacuum pumping Vacuum Pumping.

Fill the air conditioning system with refrigerant. Refer to: Refrigerant, filling Refrigerant, Filling.

Leak-trace the air conditioning system. Refer to: Leak detection, tracer agent Leak Detection, Tracer Agent.
Or Refer to: Leak tracing, electronic leak tracer Leak Tracing, Electronic Leak Tracer.

Carry out a performance test on the climate control system. Refer to: Climate control system, check Climate Control System, Check.
