Housing Assembly HVAC: Service and Repair

Climate control unit

Operation number: 87322

Removal

Note! Removal steps in this procedure may contain installation details.

Drain AC compressor Refer to: AC compressor Service and Repair AC compressor, B6304T2 Service and Repair

Remove the expansion valve Refer to: Expansion valve, B6304T2 Service and Repair

Remove side door front Refer to:

Remove the dashboard Refer to: Dashboard Dashboard

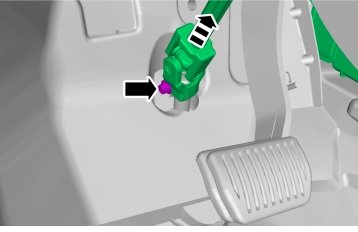

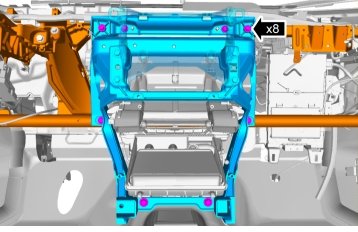

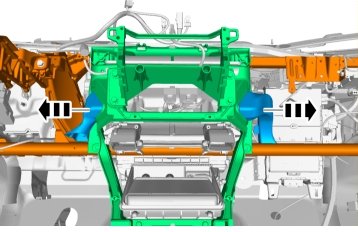

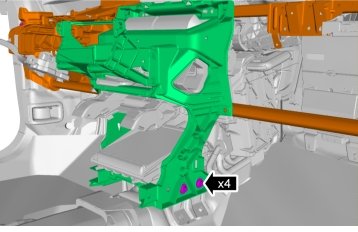

Torque: M8, 24 Nm




Torque: M6, 10 Nm




Torque: M8, 24 Nm

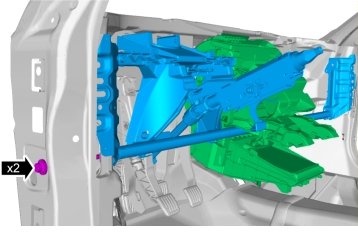

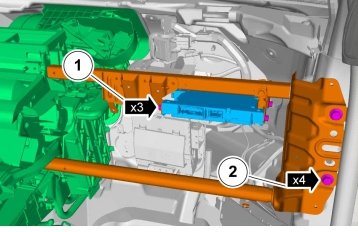

1. Torque: M6, 10 Nm

2. Torque: M10, 50 Nm

Remove the engine control module (ECM) Refer to: Engine control module (ECM), B6304T2 Engine Control Module (ECM)

Remove the wiper mechanism, windscreen Refer to: Wiper mechanism, windshield, R.H.D Wiper Mechanism, Windshield, R.H.D Wiper mechanism, windshield, L.H.D Wiper Mechanism, Windshield, L.H.D

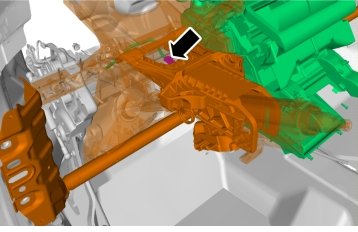

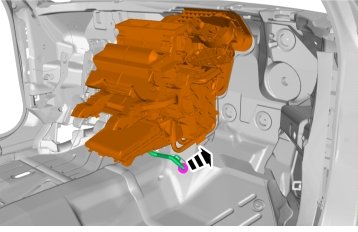

Torque: M6, 10 Nm

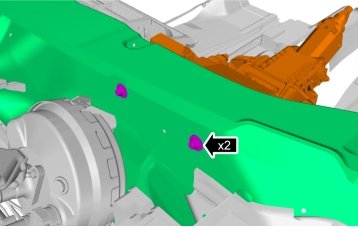

Torque: M10, 50 Nm









Installation

To install, reverse the removal procedure.

Fill refrigerant, filling Refer to: Refrigerant, filling Refrigerant, Filling
