Condenser HVAC: Service and Repair

Condenser

Operation number: 87408-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

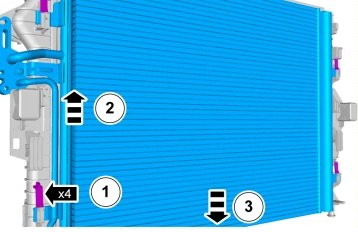

Removal and Installation

Remove the cooling fan. Refer to: Engine cooling fan (FC) Service and Repair Engine cooling fan (FC), B6304T2 Service and Repair





Vehicles with a charge air cooler.
Remove the charge air cooler. Refer to: Charge air cooler, B6304T2 Service and Repair

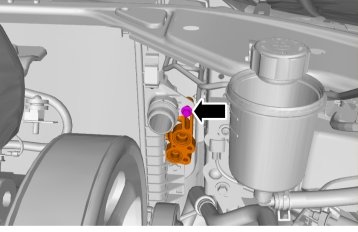

Change and lubricate the O-rings with compressor oil.

Vacuum-pump the AC-system. Refer to: Vacuum pumping Vacuum Pumping
Fill the air conditioning system with refrigerant. Refer to: Refrigerant, filling Refrigerant, Filling
Leak-trace the air conditioning system. Refer to: Leak tracing, electronic leak tracer Leak Tracing, Electronic Leak Tracer
Or: Refer to: Leak detection, tracer agent Leak Detection, Tracer Agent
Carry out a performance test on the climate control system. Refer to: Climate control system, check Climate Control System, Check
