Fuel Fired Booster Heater

Fuel Fired Booster Heater

Operation number: 87522-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Note! First read the instructions for working with the fuel system. Refer to: Safety Information Gasoline - Fuel System

Remove the battery cable. See Refer to: Battery Disconnecting

Drain the cooling system. Refer to: Service and Repair

Remove the engine coolant heater's exhaust pipe. Refer to: Fuel Fired Booster Heater Exhaust Pipe Service and Repair

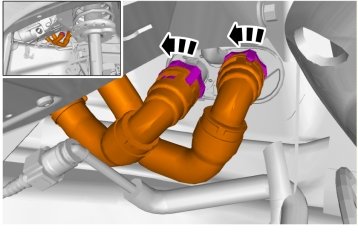

Note! Be prepared to collect escaping coolant.

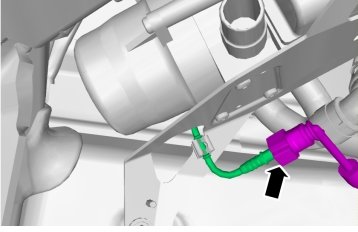

Note! Be prepared to collect escaping fuel.

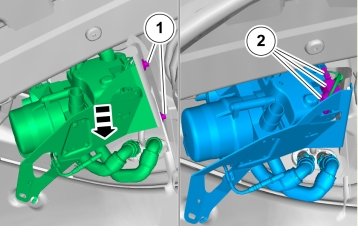

Remove the following items:
1. Torque: M6, 10 Nm

2. The electrical connectors, x3.

Installation

To install, reverse the removal procedure

Order appropriate software. Programming and Relearning

Carry out a performance test on the engine coolant heater.
