Auxiliary Heater Element: Service and Repair

Water pump, fuel-driven auxiliary heater

Operation number: 87537-3

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Service and Repair

Remove the following items:
- the cold zone panel. Refer to: Secondary Bulkhead Panel RH Service and Repair
- the engine control module. Refer to: Engine control module (ECM), B6304T2 Engine Control Module (ECM)

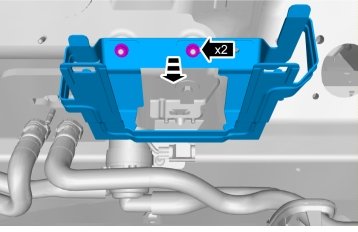

Torque: M6, 10 Nm

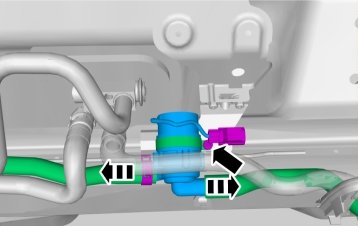

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure
