Auxiliary Cabin Heater Exhaust Pipe: Service and Repair

Fuel Fired Booster Heater Exhaust Pipe

Operation number: 87547-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

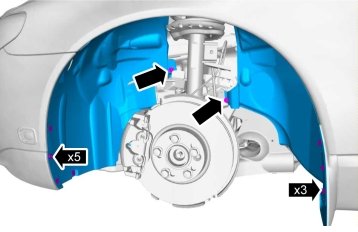

Remove the right-hand front wheel. Refer to: Wheels Service and Repair.

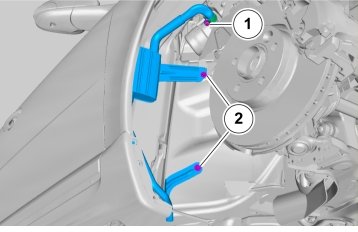

1. Torque: M6, 10 Nm

2. Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.
