Actuator Damper Climate Control System Driver's Side

Actuator damper climate control system driver's side

Operation number: 87305-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

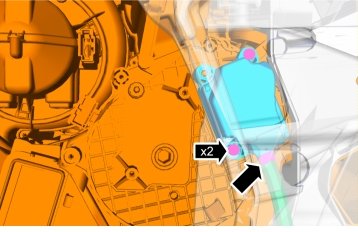

Removal

Remove the actuator for ventilation. Refer to: Actuator register duct footwell, L.H.D Actuator Register Duct Footwell.





Installation

To install, reverse the removal procedure.

Carry out identification of the damper motor module (DMM). See: VIDA Vehicle communication.

Check the climate control system. Refer to: Climate control system, check Climate Control System, Check.
